TAG Standard Duty Towbar & Direct Fit ECU Wiring Harness Kit (T2T478-K201)
This TAG Standard Duty Towbar and Direct Fit Wiring Kit (T2T478-K201) is designed for the Toyota Rav4 (ACA3/GSA3 Series) manufactured between 01/2006 and 01/2013. This towbar is rated for a maximum Towing Capacity of 1200kg and a Ball Weight of 120kg. This kit includes a high-quality Direct Fit ECU Wiring Harness, ensuring safe, reliable power management for your trailer lights without overloading the vehicle's standard electrical system. The installation benefits from a hassle-free, Partially Concealed fitment that requires no bumper removal or cut-out.
Important Fitment Note:
Bumper Cut Out Required: No. Bumper Removed During Fitment: No. The Direct Fit ECU Wiring ensures compatibility and protection for the vehicle's complex electrical systems.
This Kit Includes:

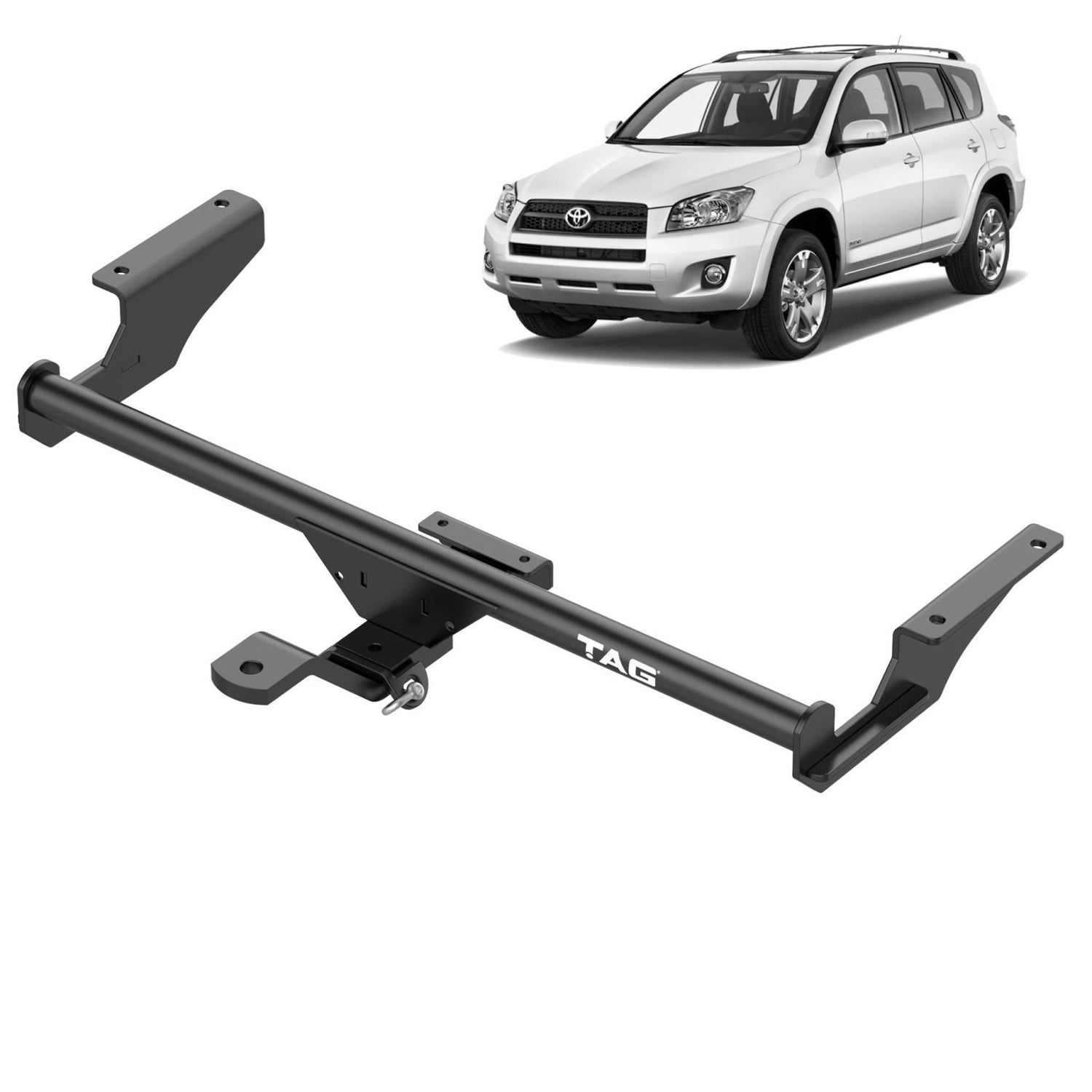

- TAG Standard Duty Towbar (T2T478)

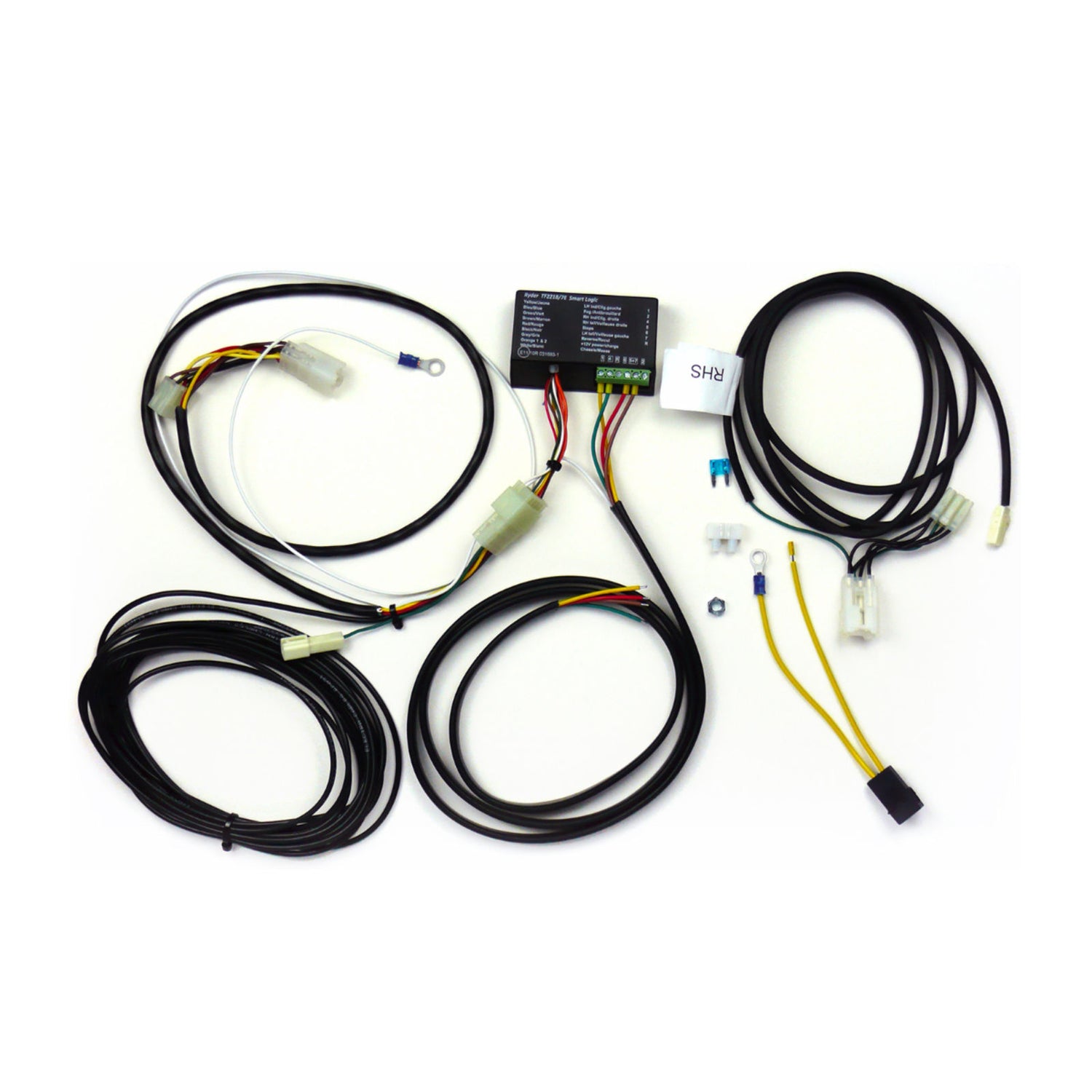

- TAG Direct Fit Wiring Harness (ECU Type)
- TAG 7 Pin Flat Socket - Vehicle Side
TAG Standard Duty Towbars are designed and manufactured in Australia and feature:
- Factory Mounting Points for ease of fitment
- Durable Powder Coated Finish
- Flat Fixed 2-Bolt Tow Ball Mount (L231)
- TAG Limited Lifetime Warranty
- Towbar includes Tow Ball
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Style: 7 Pin Flat
- Type: Plugs & Sockets
- Reverse Sensor Cut Off: Not Applicable
- Diagnostic Coding: Not Required
- Fog Cut Off: Not Applicable
- Wiring Option: Direct Fit ECU
- Fitting Time [min.]: 60
- Towbar Class: Standard Duty
- Towbar Capacity [kg]: 1200
- Hitch Type: Flat Fixed 2 Bolt
- Tow Ball Mount: L231
- Coating: Enamel Immersion Dipped
- Bumper Removed During Fitment: No
- Bumper Cut Out Required: No
- Exposure: Partially Concealed
- Ball Weight [kg]: 120
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications (Full Details)
| Make | Model | Year Start - Year End | Body Type | Engine Details | Drivetrain | Trim Level |
|---|---|---|---|---|---|---|
| TOYOTA | RAV4 | 01/2006 - 01/2013 | Wagon | 2AZFE 2.4L Petrol | Automatic/Manual FWD | ACA38R |
| TOYOTA | RAV4 | 01/2006 - 01/2013 | SUV | 2GRFE 3.5L Petrol | Automatic 4WD | GSA33R |
| TOYOTA | RAV4 | 01/2006 - 01/2013 | SUV | 2AZFE 2.4L Petrol | Automatic/Manual 4WD | ACA33R ALTITUDE,CRUISER, CRUISER L, CV |
| TOYOTA | RAV4 | 01/2006 - 12/2012 | SUV | 2AZ-FE 2.4L Petrol | AWD | ACA38 |
| TOYOTA | RAV4 | 01/2006 - 12/2012 | Wagon | 2AZ-FE 2.4L Petrol | AWD | ACA38 |
| TOYOTA | RAV4 | 01/2006 - 12/2012 | SUV | 2GR-FE 3.5L Petrol | AWD | GSA33 |
| TOYOTA | RAV4 | 01/2006 - 12/2012 | Wagon | 2GR-FE 3.5L Petrol | AWD | GSA33 |
| TOYOTA | RAV4 | 01/2006 - 12/2012 | SUV | 2AZ-FE 2.4L Petrol | AWD | ACA33 |
| TOYOTA | RAV4 | 01/2006 - 12/2012 | Wagon | 2AZ-FE 2.4L Petrol | AWD | ACA33 |
