TAG | Standard Duty Towbar & Universal Wiring Kit | Toyota RAV4 00–06 | T2T118-K301
Couldn't load pickup availability
TAG | Standard Duty Towbar & Universal Wiring Kit | Toyota RAV4...
Description
Description
TAG Standard Duty Towbar & Universal Wiring Harness Kit (T2T118-K301)
This TAG Standard Duty Towbar and Universal Wiring Kit (T2T118-K301) is suitable for the Toyota RAV4 (XA20 series), covering both 3-Door and 5-Door models manufactured from 07/2000 to 01/2006. This towbar is rated for Standard Duty (Class 2) towing, providing a maximum Towing Capacity of 1200kg and a Ball Weight of 90kg. It features a Partially Concealed installation that requires no cutting or removal of the bumper. The kit ensures universal electrical connectivity with the included TAG Universal Wiring Harness and 7 Pin Flat Socket.
This Kit Includes:

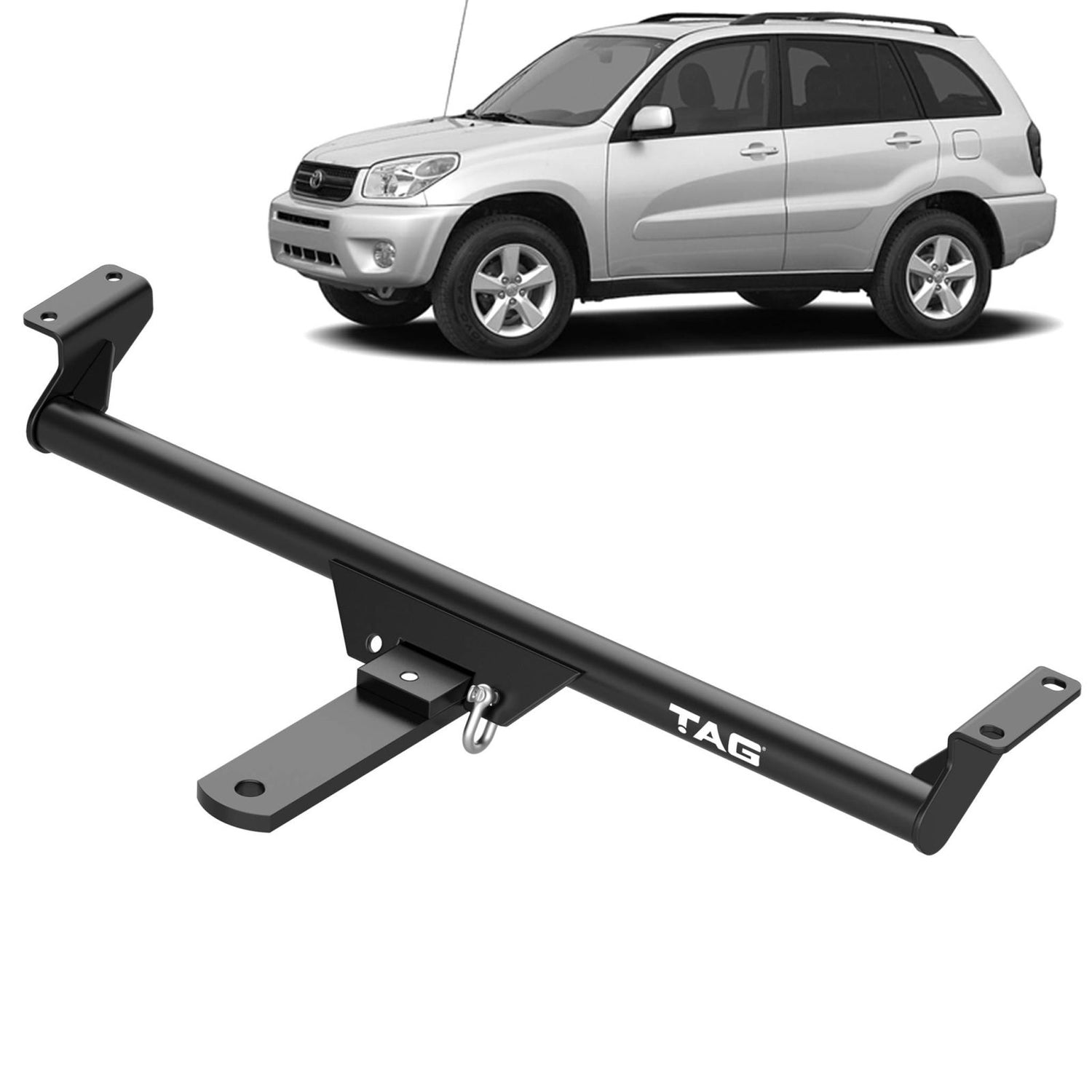

- TAG Standard Duty Towbar (T2T118)

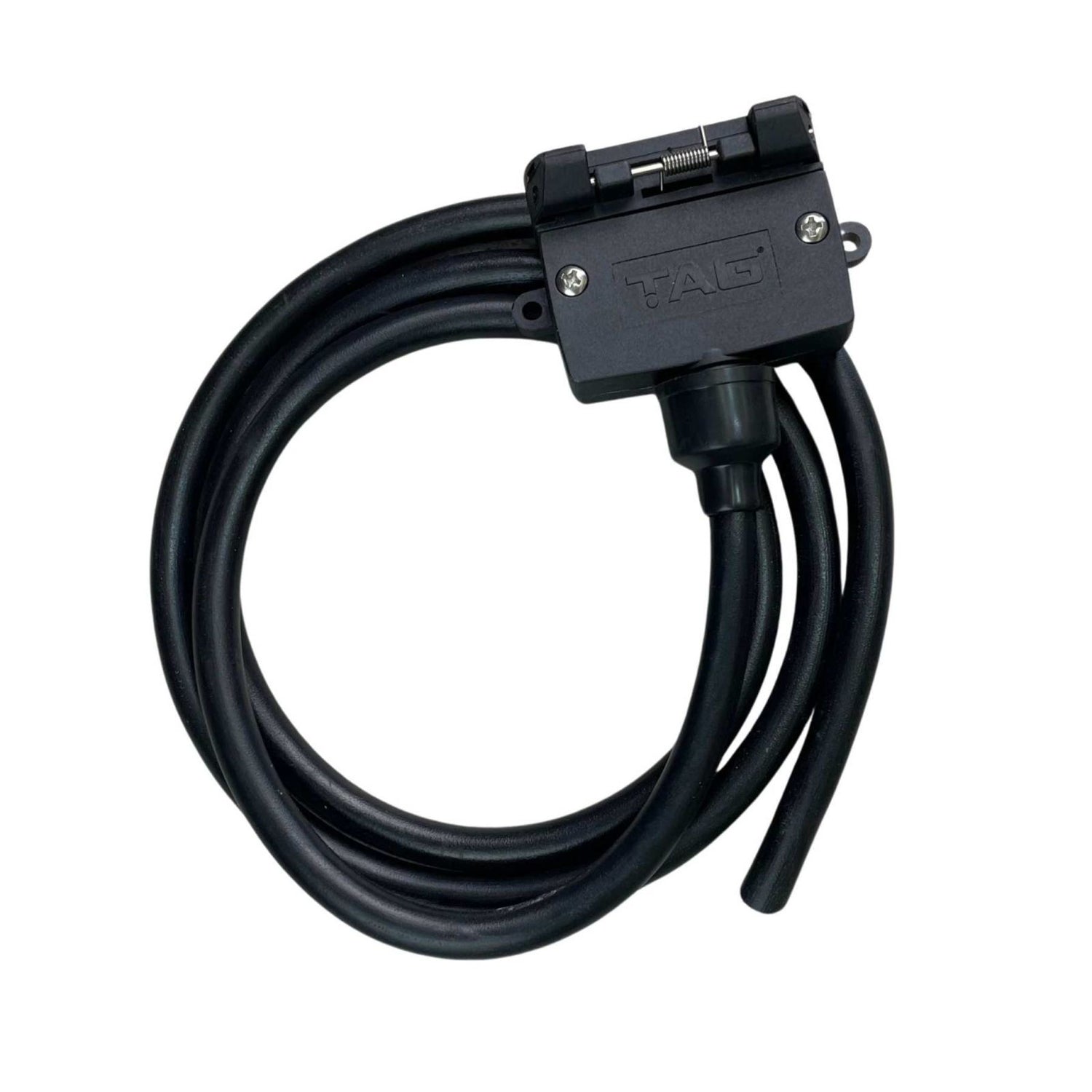

- TAG Universal Wiring Harness with 7 Pin Flat Socket vehicle side
TAG Standard Duty Towbars are designed and manufactured in Australia and feature:
- Factory Mounting Points for ease of fitment
- Durable Powder Coated Finish
- Flat Fixed 2-Bolt Tow Ball Mount (L200)
- TAG Limited Lifetime Warranty
- Towbar includes Tow Ball
Specifications:
- Type: Universal Wiring Kits
- Style: 7 Pin Flat
- Diagnostic Coding: Not Applicable
- Fog Cut Off: Not Applicable
- Reverse Sensor Cut Off: Not Applicable
- Wiring Option: Universal Harness with 7 Pin Flat Plug
- Fitting Time [min.] (UNT022): 60
- Fitting Time [min.] (T2T118): 120
- Bumper Removed During Fitment: No
- Hitch Type: Flat Fixed 2 Bolt
- Bumper Cut Out Required: No
- Tow Ball Mount: L200
- Exposure: Partially Concealed
- Coating: Enamel Immersion Dipped
- Towbar Capacity [kg]: 1200
- Towbar Class: Standard Duty
- Ball Weight [kg]: 90
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications (Full Details)
| Make | Model | Year Start - Year End | Body Type | Engine Details | Drivetrain | Trim Level |
|---|---|---|---|---|---|---|
| TOYOTA | RAV4 | 01/2003 - 01/2006 | Wagon | 2AZFE 2.4L Petrol | Automatic/Manual 4WD | ACA22R |
| TOYOTA | RAV4 | 01/2003 - 01/2006 | Wagon | 2AZFE 2.4L Petrol | Automatic/Manual 4WD | ACA23R |
| TOYOTA | RAV4 | 08/2003 - 11/2005 | Wagon | 2AZ-FE 2.4L Petrol | AWD | ACA22, ACA23 |
| TOYOTA | RAV4 | 08/2003 - 11/2005 | Wagon | 2AZ-FE 2.4L Petrol | AWD | ACA22, ACA23 |
| TOYOTA | RAV4 | 07/2000 - 09/2003 | Wagon | 1AZ-FE 2.0L Petrol | AWD | ACA20, ACA21 |
| TOYOTA | RAV4 | 07/2000 - 09/2003 | Wagon | 1AZ-FE 2.0L Petrol | AWD | ACA20, ACA21 |
| TOYOTA | RAV4 | 01/2000 - 01/2003 | Wagon | 1AZFE 2.0L Petrol | Automatic/Manual 4WD | ACA21R |
| TOYOTA | RAV4 | 01/2000 - 01/2003 | Wagon | 1AZFE 2.0L Petrol | Automatic/Manual 4WD | ACA20R |
