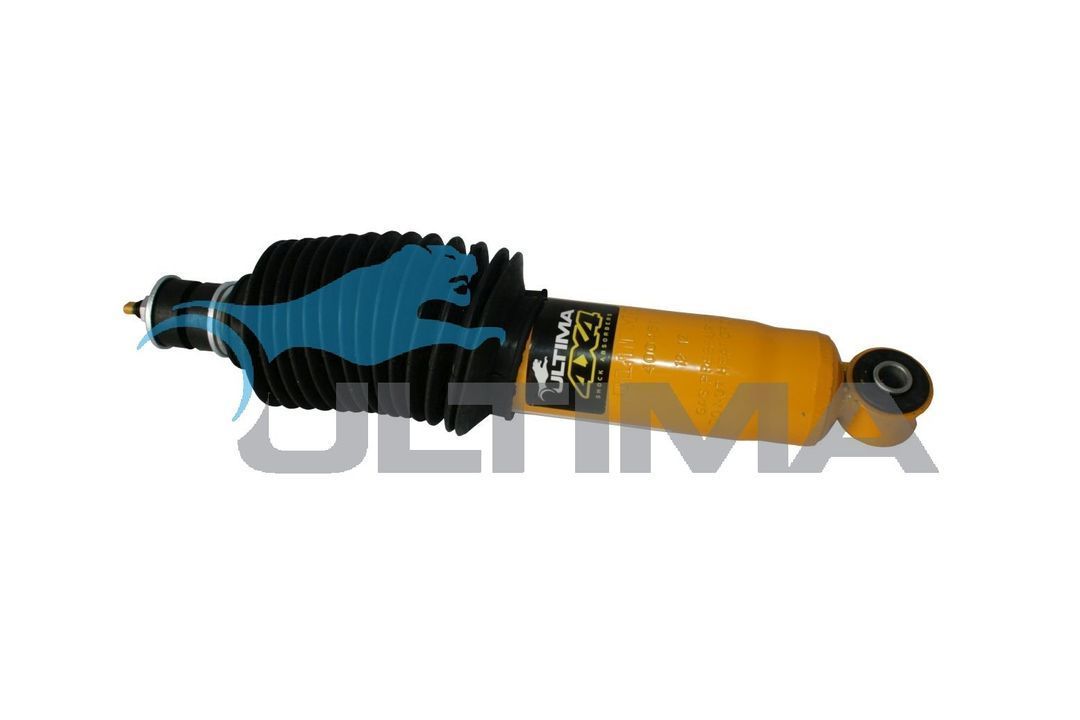

Ultima | Front Shock Absorber HD 35mm Gas | Nissan Navara D22 4WD 1997–2015 | 400461

Ultima Front Heavy Duty Shock Absorber (Single) for Nissan Navara D22 4WD 1997–2015

This Ultima Front Heavy Duty Shock Absorber (400461) is a high-performance, gas-charged component from the robust 400 Series, custom-engineered for the front suspension of the Nissan Navara D22 4WD Ute. Featuring a 35mm Big Bore design, this shock is built to withstand the punishing demands of off-road driving and heavy loads. It provides superior dampening and control, significantly improving steering response and stability on all terrains, and is suitable for both standard ride height and lifted (raised) applications.

Warranty

3 year / 20,000 km

Why Ultima?

Ultima 4X4 shocks are trialed and tested to excel in harsh environments. They utilize low-pressure nitrogen gas charging and specialized valving to eliminate oil foaming and fade, ensuring consistent performance and control, regardless of operating temperature or terrain.

Key Features:

• Application: Front Shock Absorber (Heavy Duty/Raised) for Nissan Navara D22 4WD 1997–2015
• Big Bore Design: Features a 35mm bore for increased oil capacity and superior heat dissipation.
• Lift Suitability: Excellent performance for both **Standard Height** and vehicles with Raised Suspension (e.g., up to 2 inches).
• Design: Gas-charged twin-tube construction.
• Mounting: Top Pin / Bottom Eye with Sleeve.
• Technical Specs: Compressed length 207 mm / Extended length 307 mm.
• Unit of Measure: Sold individually (1 piece) – 2 required per vehicle.

Technical Specifications

• Brand: Ultima
• Part Number (SKU): 400461
• System Type: Shock Absorber (Heavy Duty 4X4)
• Compressed Length: 207 mm
• Extended Length: 307 mm
• Top Mounting: Pin
• Bottom Mounting: Eye with Sleeve
• Position: Front (Suits Left or Right)
• Vehicle Model: Nissan Navara 4WD
• Series: D22
• Years: 1997–2015
• Use: 4x4 / Off-Road / Heavy-Duty Touring

Vehicle Fitment Information

Important Information

• The image shown may not reflect the actual product
• Shipping times may vary depending on destination and stock availability
