SKU: TXR804-K201

TAG | Extreme Recovery Towbar & Wiring Kit | Ranger PX1-PX3 & BT-50 UP/UR Cab Chassis | TXR804-K201

$1,536.99 $1,706.88
Low Stock: Call to Confirm
Tax included Shipping calculated at checkout.


Add a stand out message for your customers

Description

TAG Extreme Recovery (XR) Towbar & Direct Fit Wiring Kit Solution for your Ford Ranger PX & Mazda BT-50 UP/UR Cab Chassis

The TAG Extreme Recovery (XR) Towbar & Direct Fit Wiring Kit (TXR804-K201) is engineered exclusively for Ford Ranger All PX Series (09/2011 - 02/2022) and Mazda BT-50 UP/UR Series (09/2011 - 07/2020) Cab Chassis models. This kit provides an extreme-duty 3500kg towbar with dual 4500kg recovery points and a Direct Fit ECU wiring harness.

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

⚠️ Compatibility Note: This towbar is strictly for **Cab Chassis models only** and is not suitable for styleside/tub body vehicles. Wiring uses a Direct Fit ECU (no diagnostic coding required).

Kit Includes:

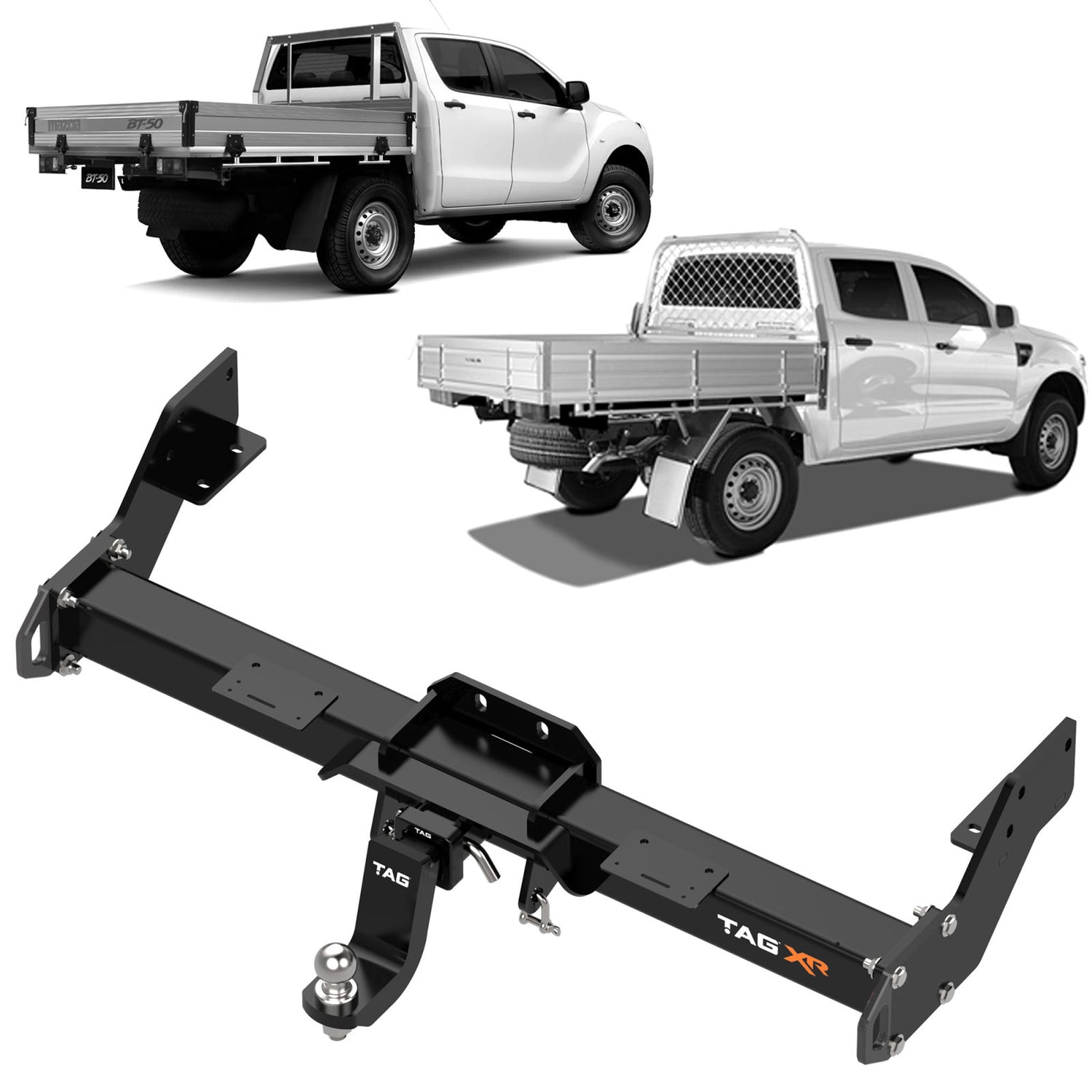

  • TAG 4x4 Extreme Recovery Towbar (TXR804)

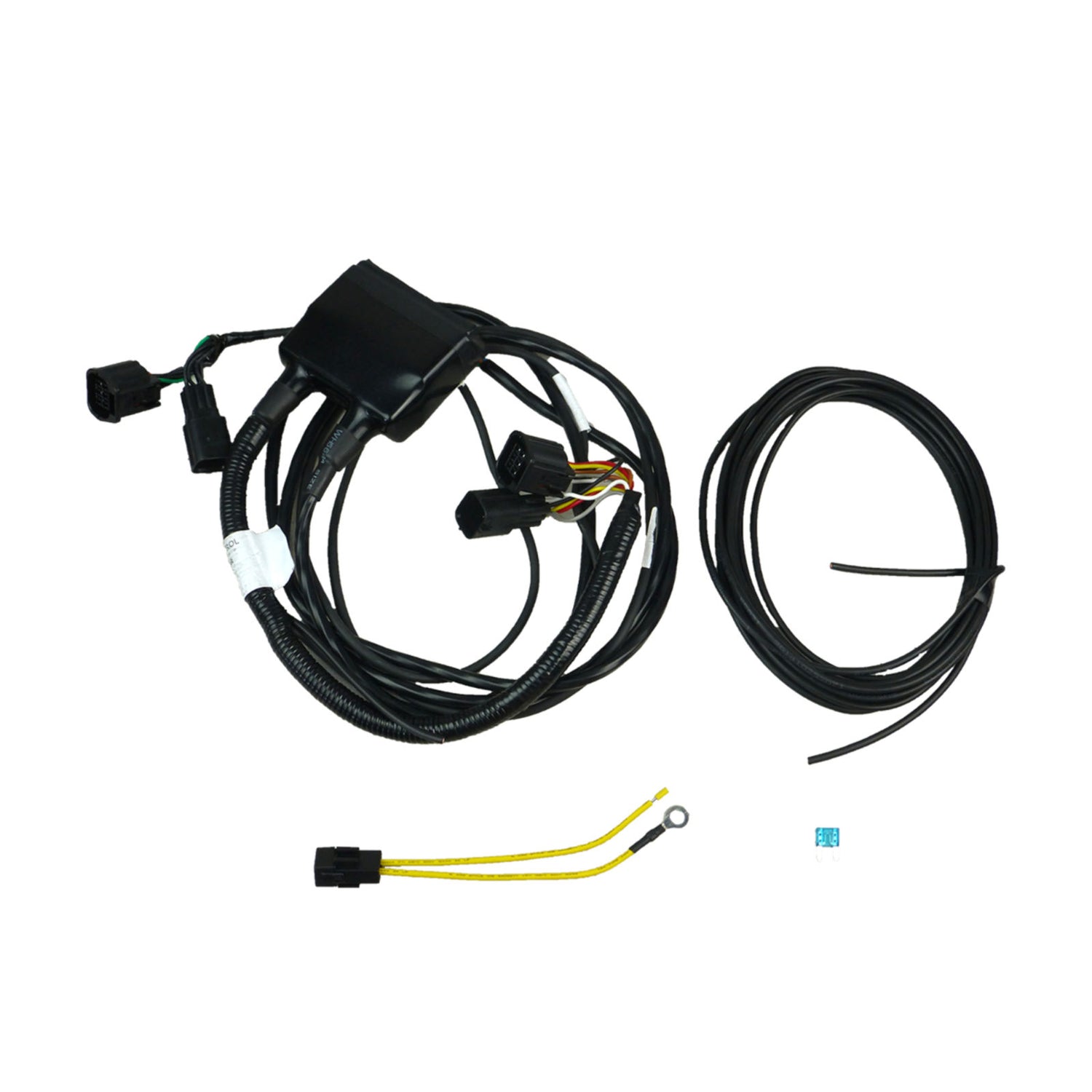

  • TAG Direct Fit Wiring Harness (K201)

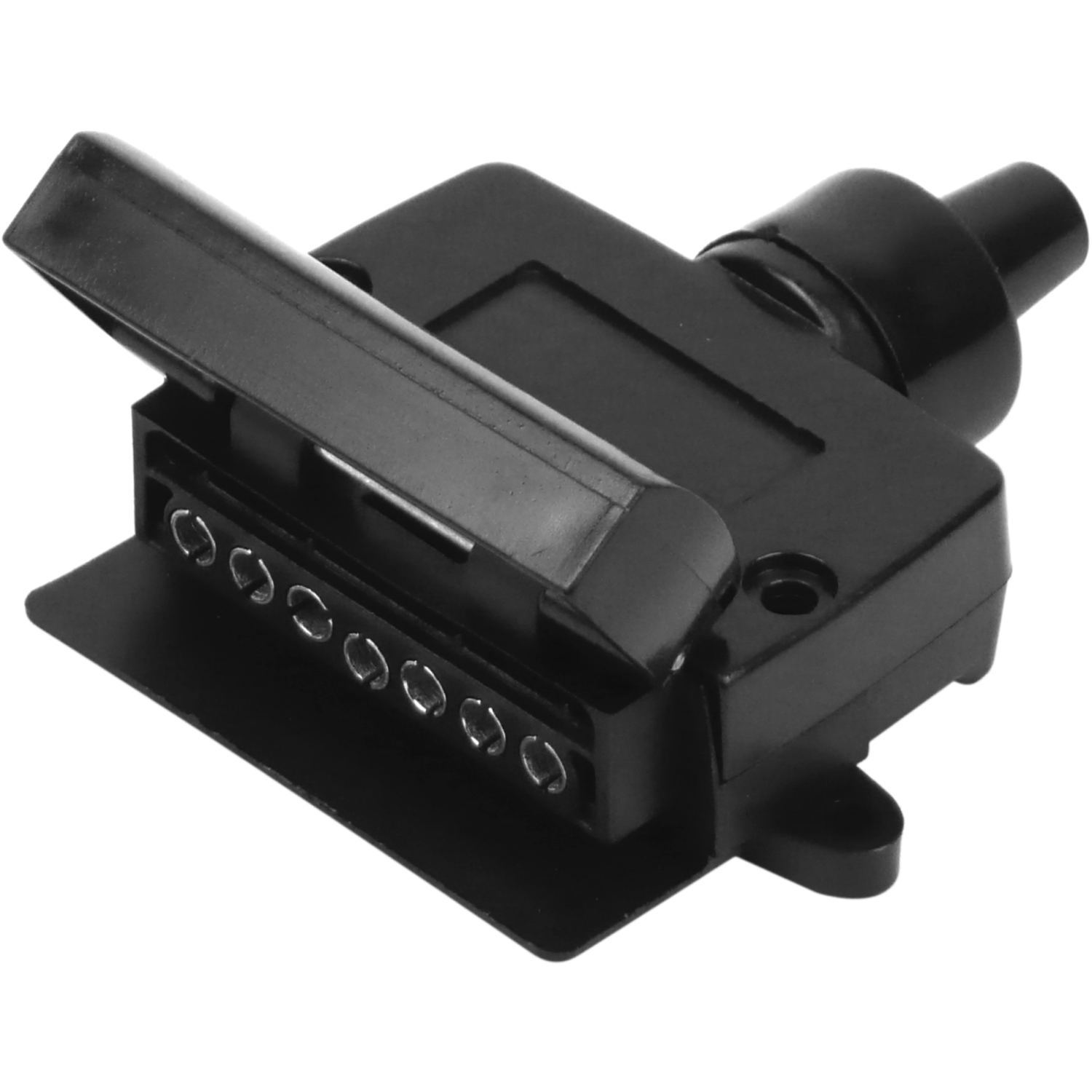

  • TAG 7 Pin Flat Socket - Vehicle Side
  • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

Key Extreme Recovery Features:

  • 89mm x 89mm Extreme Duty Reinforced Crossbar
  • Two WLL **4500kg Load-Rated Recovery Points** integrated into the 3-Piece Design side-arms (with bevelled edges to suit soft-shackles)
  • Flush chassis-mounted profile for **maximum offroad clearance** and improved departure angles
  • Dual top-mounted Trailer & Anderson Plug Mounts
  • Class 4 Towbar - 50mm Square Hitch Receiver
  • Highly durable, textured Extreme Duty Powder Coated Finish
  • Exposure: Exposed
  • TAG Limited Lifetime Warranty

Specifications:

  • Towbar Class: Heavy Duty (4x4 Recovery)
  • Towbar Capacity [kg]: 3500
  • Ball Weight [kg]: 350
  • Recovery Load-tested: 4500kg WLL
  • Recovery Points: 2
  • Hitch Type: 50mm Square Hitch Receiver
  • Wiring Option: Direct Fit ECU
  • Diagnostic Coding: Not Required
  • Reverse Sensor Cut Off: Not Applicable
  • Fitting Time [min.]: ~60
  • Coating: Textured Powder Coated

Professional Installation Recommended: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.

Vehicle Applications for Ford Ranger All PX & Mazda BT-50 UP/UR Cab Chassis (2011 - 2022)

Make Model From To Body Series Engine Variant Drivetrain
Mazda BT-50 (11/2011 - 10/2020)
MAZDA BT-50 07/2016 07/2020 Cab Chassis UR P5AT | 3.2L | Diesel XT Automatic/Manual 4WD
MAZDA BT-50 07/2016 07/2020 Cab Chassis UR P5AT | 3.2L | Diesel XT Automatic/Manual 4WD
MAZDA BT-50 07/2016 07/2020 Cab Chassis UR P4AT | 2.2L | Diesel XT Automatic/Manual RWD
MAZDA BT-50 07/2016 07/2020 Cab Chassis UR P5AT | 3.2L | Diesel XT Manual RWD
MAZDA BT-50 07/2016 07/2020 Cab Chassis UR P5AT | 3.2L | Diesel XT Manual RWD
MAZDA BT-50 07/2016 07/2020 Cab Chassis UR P5AT | 3.2L | Diesel XT FREESTYLE CAB Manual 4WD
MAZDA BT-50 07/2016 07/2020 Cab Chassis UR P5AT | 3.2L | Diesel XT FREESTYLE CAB Automatic/Manual RWD
MAZDA BT-50 01/2016 10/2020 Cab Chassis UR P5AT | 3.2L | Diesel with DPF AWD
MAZDA BT-50 01/2016 10/2020 Cab Chassis UR P5AT | 3.2L | Diesel with DPF RWD
MAZDA BT-50 01/2016 10/2020 Cab Chassis UR P4AT | 2.2L | Diesel with DPF RWD
MAZDA BT-50 11/2011 06/2020 Cab Chassis B22, B32, UP, UR (UP0YF1, UR0YF1) P5-AT | 3.2L | Diesel MZ-CD AWD
MAZDA BT-50 11/2011 06/2020 Cab Chassis B22, B32, UP, UR (UP0YF1, UR0YF1) P5-AT | 3.2L | Diesel MZ-CD RWD
MAZDA BT-50 11/2011 06/2020 Cab Chassis B22, B32, UP, UR P4-AT | 2.2L | Diesel MZ-CD RWD
Ford Ranger (08/2011 - 06/2022)
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P4AT | 2.2L | Diesel XL Double Cab 4WD
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P5AT | 3.2L | Diesel XL Double Cab 4WD
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P4AT | 2.2L | Diesel XL Hi-Rider RWD
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P4AT | 2.2L | Diesel XL Hi-Rider Double Cab RWD
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P4AT | 2.2L | Diesel XL Hi-Rider Super Cab RWD
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P4AT | 2.2L | Diesel XL Low Rider Single Cab RWD
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P5AT | 3.2L | Diesel XL Single Cab 4WD
FORD RANGER 10/2018 05/2022 Cab Chassis PX3 P5AT | 3.2L | Diesel XL Super Cab 4WD
FORD RANGER 07/2016 05/2022 Cab Chassis PX (PX2, PX3) P5AT | 3.2L | Diesel XL, SPORT Automatic/Manual 4WD
FORD RANGER 08/2015 05/2022 Cab Chassis PX2 P4AT | 2.2L | Diesel SUPER CAB XL HIRIDER Manual RWD
FORD RANGER 08/2015 05/2022 Cab Chassis PX (PX2, PX3) P4AT | 2.2L | Diesel XL Manual 4WD
FORD RANGER 08/2015 05/2022 Cab Chassis PX (PX2, PX3) P4AT | 2.2L | Diesel XL Manual RWD
FORD RANGER 06/2015 05/2022 Cab Chassis PX (PXII, PXIII) P4-AT | 2.2L | Diesel TDdi AWD
FORD RANGER 06/2015 05/2022 Cab Chassis PX (PXII, PXIII) P4-AT | 2.2L | Diesel TDdi RWD
FORD RANGER 11/2011 05/2022 Cab Chassis PX (PX, PXII, PXIII) P5-AT | 3.2L | Diesel TDdi 4WD
FORD RANGER 09/2011 06/2022 Cab Chassis PX (PX1, PX2, PX3) P5AT | 3.2L | Diesel SUPER CAB XL Automatic/Manual 4WD
FORD RANGER 09/2011 03/2022 Cab Chassis PX (PX1, PX2, PX3) P5AT | 3.2L | Diesel XL, XL PLUS Manual 4WD
FORD RANGER 04/2012 07/2017 Cab Chassis PX1 P5AT | 3.2L | Diesel XL Automatic/Manual 4WD
FORD RANGER 11/2011 05/2015 Cab Chassis PX P5AT | 3.2L | Diesel SUPER CAB XL Manual 4WD
FORD RANGER 11/2011 06/2015 Cab Chassis PX P4-AT | 2.2L | Diesel TDdi 4WD
FORD RANGER 11/2011 06/2015 Cab Chassis PX P4-AT | 2.2L | Diesel TDdi RWD
FORD RANGER 11/2011 05/2015 Cab Chassis PX P4AT | 2.2L | Diesel XL HIGHRIDER RWD
FORD RANGER 09/2011 07/2015 Cab Chassis PX1 P4AT | 2.2L | Diesel SUPER CAB XL HIRIDER Manual RWD
FORD RANGER 09/2011 07/2015 Cab Chassis PX1 P4AT | 2.2L | Diesel XL Manual 4WD
FORD RANGER 09/2011 07/2015 Cab Chassis PX1 P4AT | 2.2L | Diesel XL Manual RWD
FORD RANGER 09/2011 07/2015 Cab Chassis PX1 P4AT | 2.2L | Diesel XLT HI-RIDER Automatic/Manual RWD
FORD RANGER 08/2011 07/2015 Cab Chassis PX1 P4AT | 2.2L | Diesel XL Manual 4WD
FORD RANGER 08/2011 05/2015 Cab Chassis PX1 DPAT | 2.5L | Petrol XL Manual RWD
FORD RANGER 08/2011 07/2015 Cab Chassis PX1 P4AT | 2.2L | Diesel XL Manual RWD
FORD RANGER 08/2011 05/2015 Cab Chassis PX1 DPAT | 2.5L | Petrol XL Manual RWD
FORD RANGER 11/2011 04/2014 Cab Chassis PX DP-AT | 2.5L | Petrol i RWD
FORD RANGER 11/2011 04/2014 Cab Chassis PX DP-AT | 2.5L | Petrol i RWD
FORD RANGER 11/2011 04/2014 Cab Chassis PX DP-AT | 2.5L | Petrol i RWD
FORD RANGER 11/2011 04/2014 Cab Chassis PX DP-AT | 2.5L | Petrol i RWD
