TAG | Extreme Recovery Towbar & ECU Wiring Kit | Isuzu MU-X 4WD/RWD SUV 2021–On | TXR832-K201
Couldn't load pickup availability
TAG | Extreme Recovery Towbar & ECU Wiring Kit | Isuzu MU-X 4WD...
Description
Description
TAG Extreme Recovery Towbar Direct Fit Wiring Kit Solution for your Isuzu MU-X RJ SUV (07/2021 - on)

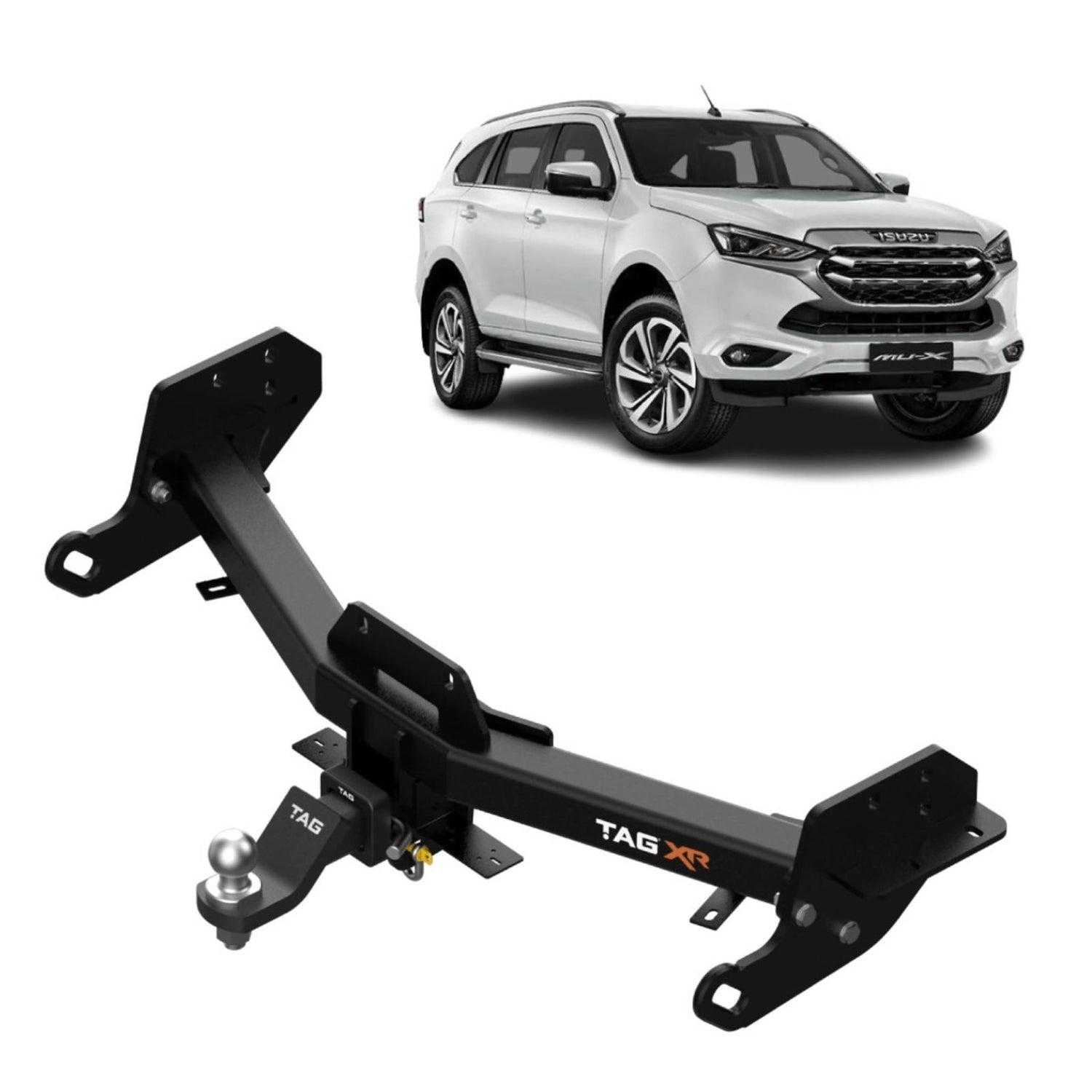

The TAG Extreme Recovery (XR) Towbar and Direct Fit Wiring Kit (TXR832-K201) is designed specifically for the Isuzu MU-X SUV (07/2021 - On). This heavy-duty towbar offers a maximum capacity of 3500kg towing and includes integrated, load-rated WLL 4000kg recovery points.
This Kit Includes:
- TAG 4x4 Recovery Towbar

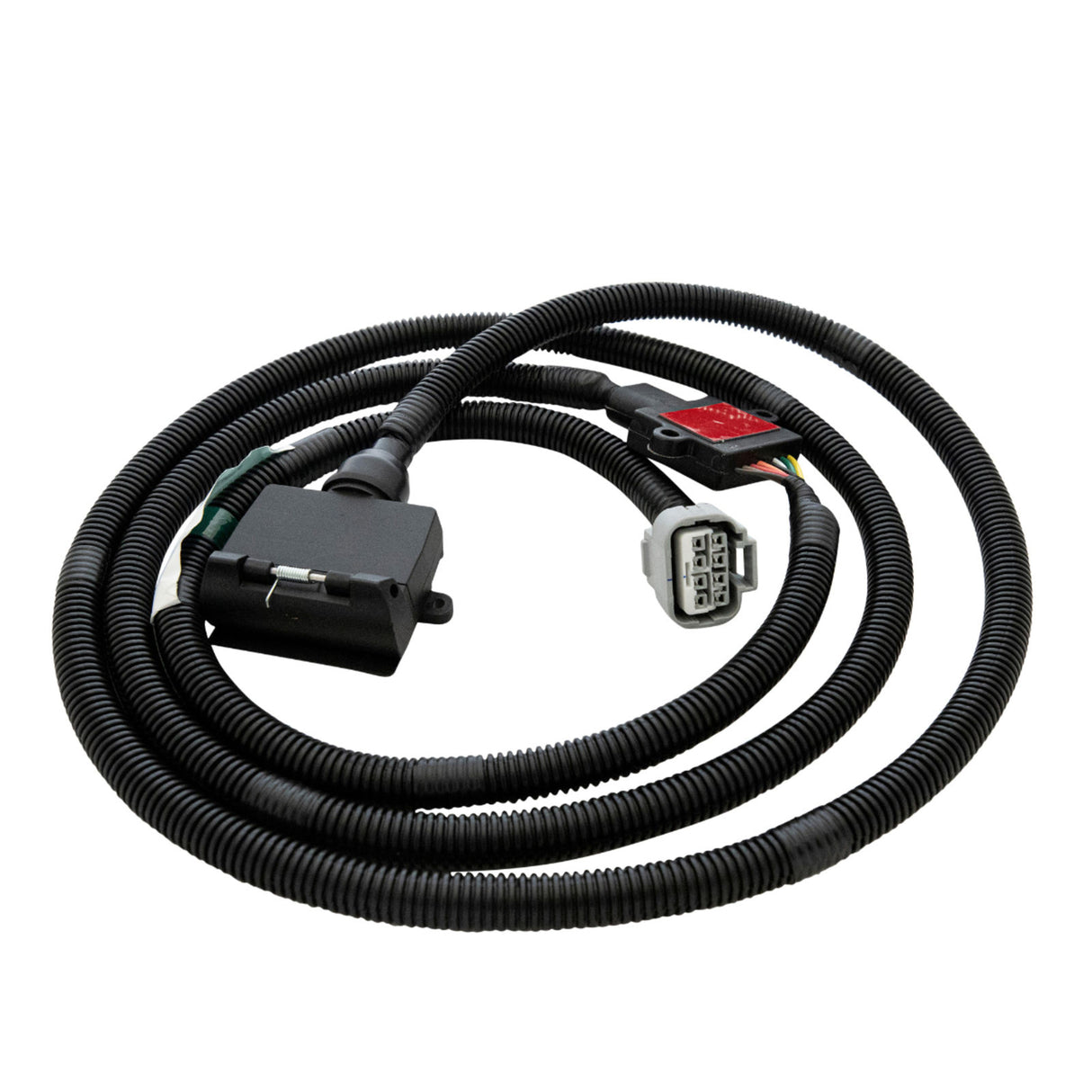

- TAG Towbar Wiring Direct Fit - ECU
- TAG 7 Pin Flat Socket - Vehicle Side
Built in Australia, the TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.
Featuring:
- Updated design to cater for larger tyres (265/70R17)
- 65mm x 65mm Extreme Duty Reinforced Crossbar
- Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft shackles.
- Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
- Highly durable, textured Extreme Duty Powder Coated Finish
- Dual top-mounted Trailer & Anderson Plug Mounts
- Class 4 Towbar - 50mm Square Hitch Receiver
- TAG Limited Lifetime Warranty
- Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
Fitting instructions now include bumper cut template.
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towbar Capacity [kg]: 3500
- Static Load Capacity (Ball Weight) [kg]: 350
- Recovery Load-tested: 4500kg WLL
- Recovery Points: 2
- Hitch Type: 50mm Square Hitch Receiver
- Tow Ball Mount: L4045STXR
- Coating: Textured Powder Coated
- Exposure: Partially concealed
- Bumper Removed During Fitment: Yes
- Bumper Cut Out Required: Yes
- Towbar Fitting Time [min.]: 90 (TXR832)
Wiring Specifics:
- Wiring Option: Direct Fit ECU
- Style: 7 Pin Flat (Plugs & Sockets)
- Diagnostic Coding: Not Required
- Reverse Sensor Cut Off: Automatic
- Fitting Time [min.]: 30 (UNT351)
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications for Isuzu MU-X (07/2021 - on) SUV
| Make | Model | Year Range | Body Type | Series | Engine Details | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|
| Isuzu MU-X (07/2021 - on) | |||||||
| ISUZU | MU-X | 11/2023 - - | SUV | TFS/TFR (UCR/UCS) | RZ4E-TC | 1.9L | Diesel | Ddi | AWD |
| ISUZU | MU-X | 11/2023 - - | SUV | TFS/TFR | RZ4E-TC | 1.9L | Diesel | Ddi | RWD |
| ISUZU | MU-X | 07/2021 - - | SUV | RJ | 4JJ3-TCX | 3.0L | Diesel | LS-M, LS-T, LS-U | Automatic 4WD |
| ISUZU | MU-X | 07/2021 - - | SUV | RJ | 4JJ3-TCX | 3.0L | Diesel | LS-M, LS-T, LS-U | Automatic RWD |
| ISUZU | MU-X | 06/2021 - - | SUV | TFS/TFR | 4JJ3-TCX | 3.0L | Diesel | Ddi | 4WD |
| ISUZU | MU-X | 06/2021 - - | SUV | TFS/TFR | 4JJ3-TCX | 3.0L | Diesel | Ddi | RWD |
