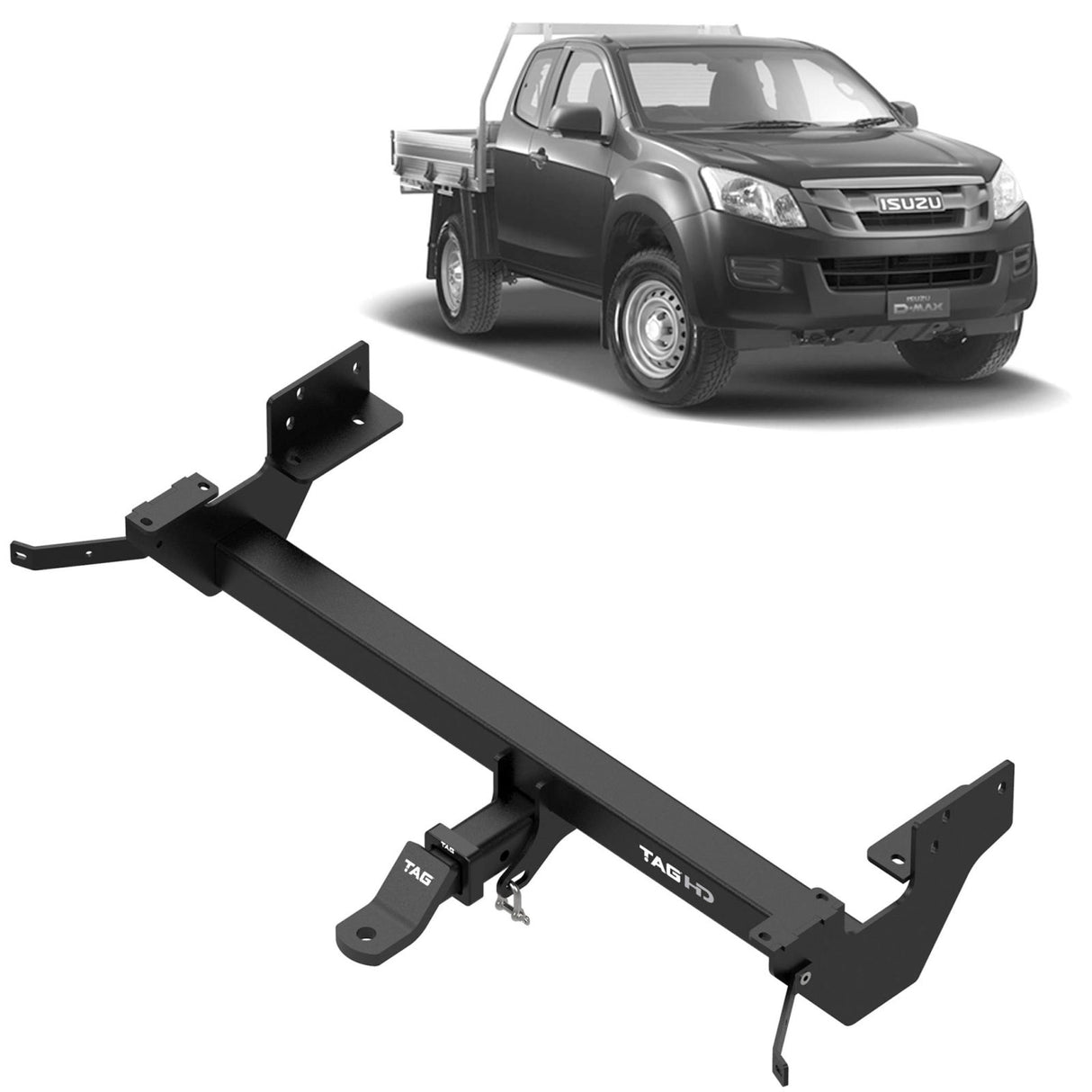

TAG Heavy Duty Towbar and Direct Fit Wiring Kit Solution for Your Isuzu D-MAX
This TAG Heavy Duty Towbar and Direct Fit Wiring Kit (T4H597-K202) is designed to fit the Isuzu D-MAX (06/2012 - 06/2020) WITH the factory rear bumper step. It offers a maximum towing capacity of 3500kg with a ball weight of 350kg.
Basic 1-Piece Heavy Duty Towbar and Direct Fit Wiring Harness To Suit models WITH Bumper Step.

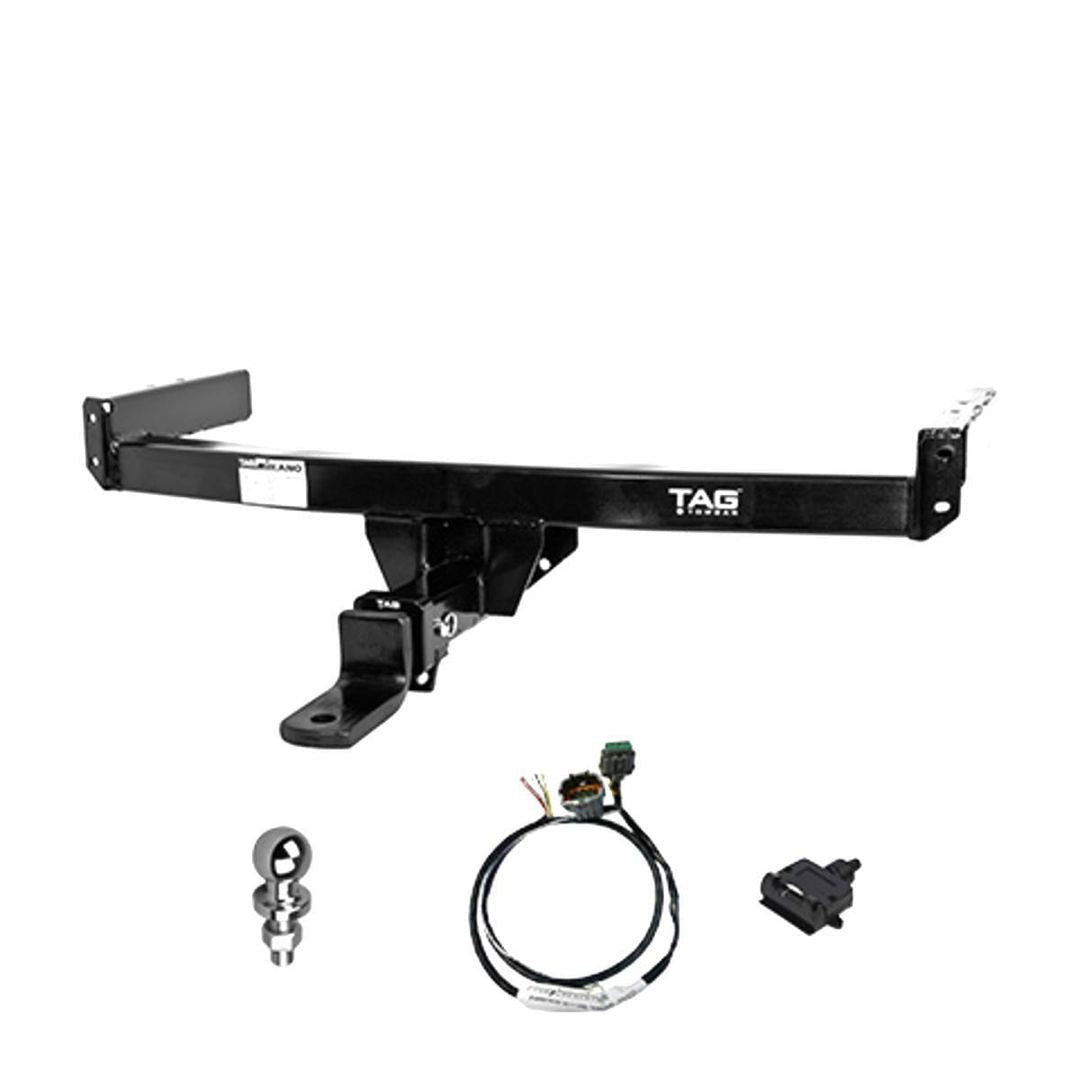

This Kit Includes:
- TAG Heavy Duty Towbar (T4H597)

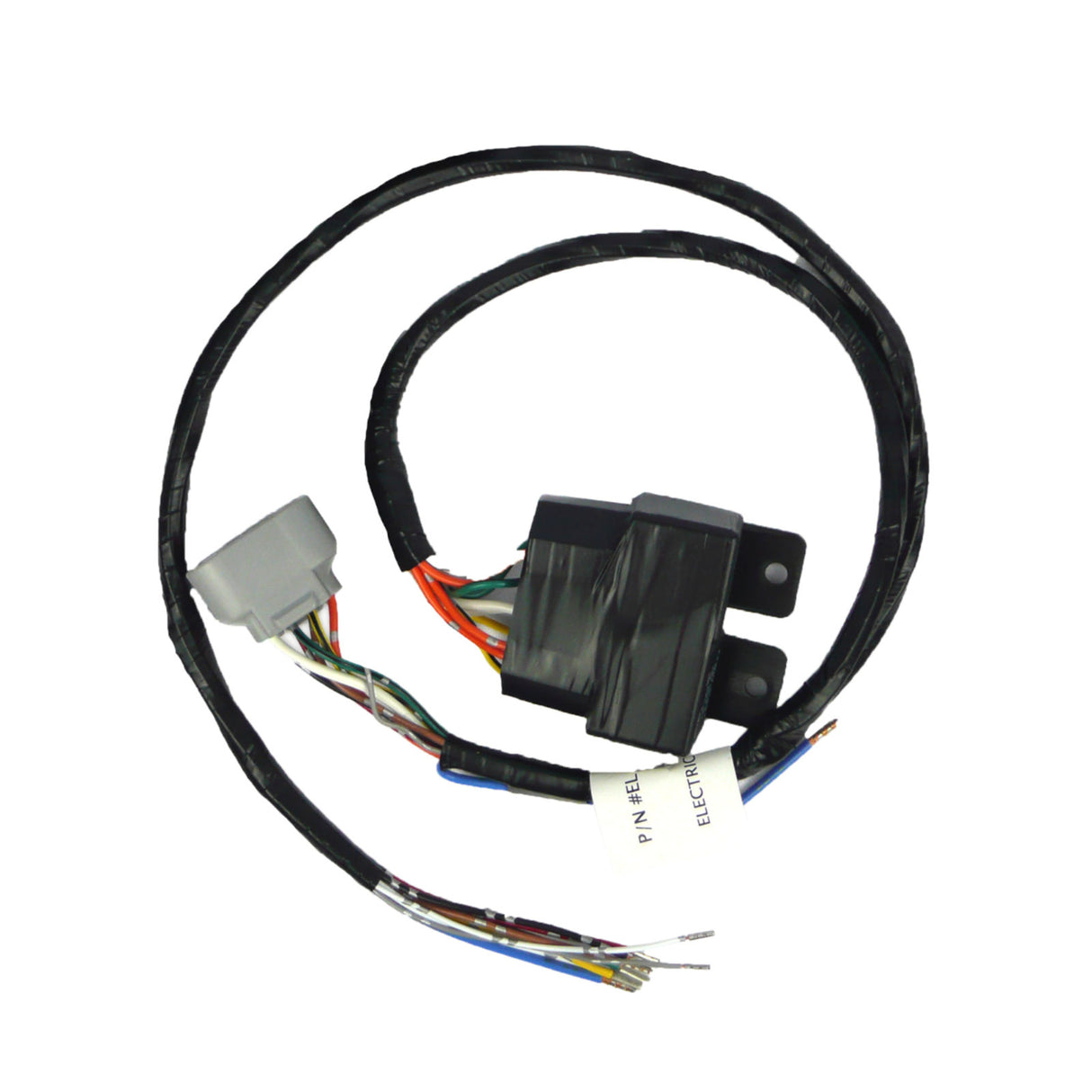

- TAG Direct Fit Wiring Harness (UNT285)

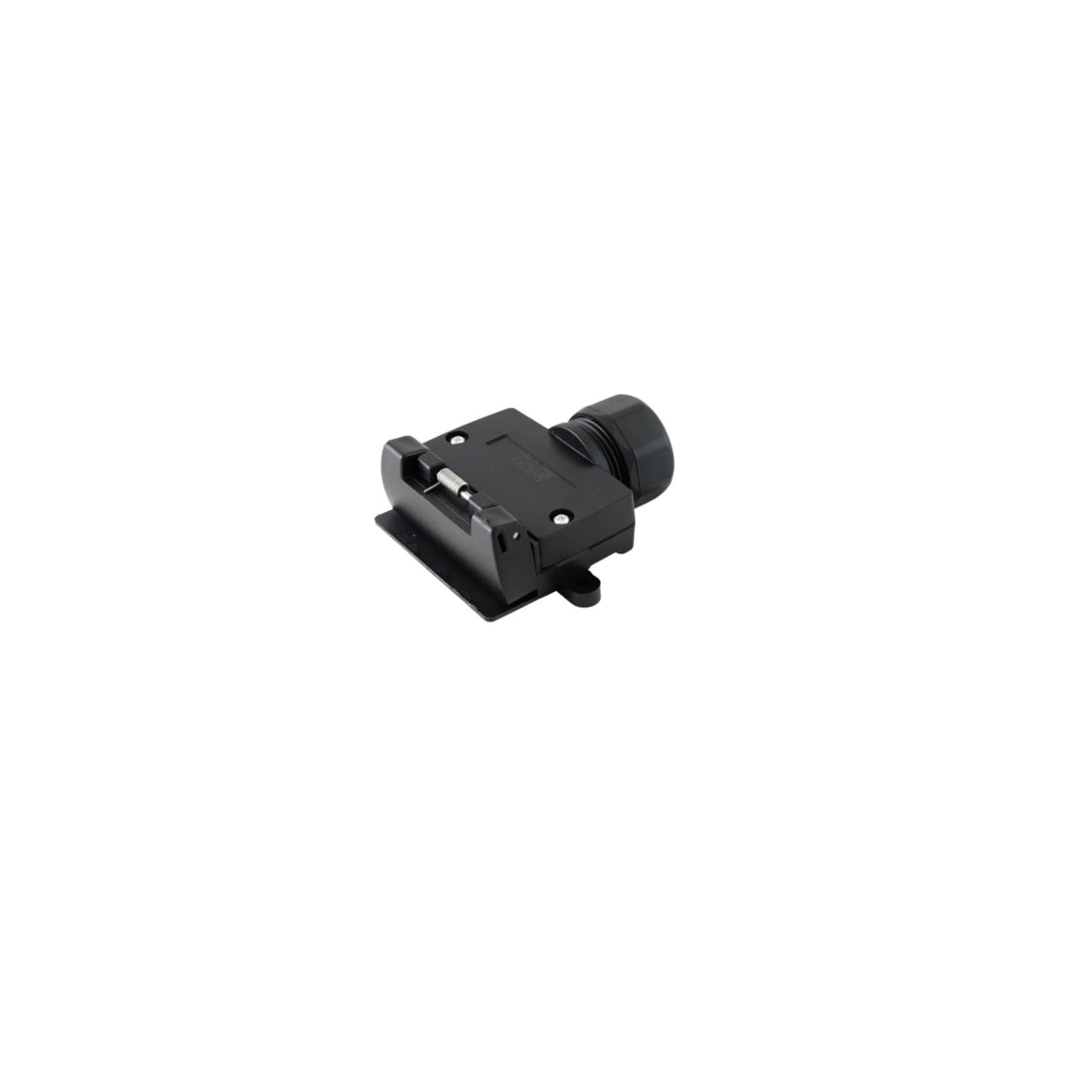

- TAG 7 Pin Flat Socket - Vehicle Side
TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:
- Class 4 Towbar - 50mm Square Hitch Receiver
- Durable Powder Coated Finish (Coating: Enamel Immersion Dipped)
- Tow Ball Mount: L4045
- TAG Limited Lifetime Warranty
- Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Towbar Class: Heavy Duty
- Towbar Capacity [kg]: 3500
- Static Load Capacity (Ball Weight) [kg]: 350
- Hitch Type: 50mm Square Hitch Receiver
- Tow Ball Mount: L4045
- Exposure: Concealed
- Bumper Removed During Fitment: Yes
- Bumper Cut Out Required: No
- Fits Models With Rear Step: Yes
- Towbar Fitting Time [min.]: 60 (T4H597)
Wiring Specifics:
- Wiring Option: Direct Fit ECU
- Style: 7 Pin Flat
- Type: Plugs & Sockets
- Diagnostic Coding: Not Required
- Reverse Sensor Cut Off: Not Applicable
- Fog Cut Off: Not Applicable
- Fitting Time [min.]: 30 (UNT285)
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications for Isuzu D-MAX (06/2012 - 06/2020)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| Isuzu D-MAX (06/2012 - 06/2020) | ||||||||
| ISUZU | D-MAX | 02/2017 | 06/2020 | Cab Chassis | TF | 4JJ1-TCX | 3.0L | Diesel | CRDi | AWD |
| ISUZU | D-MAX | 02/2017 | 06/2020 | Cab Chassis | TF | 4JJ1-TCX | 3.0L | Diesel | CRDi | RWD |
| ISUZU | D-MAX | 02/2017 | 06/2020 | Ute | TF | 4JJ1-TCX | 3.0L | Diesel | CRDi | AWD |
| ISUZU | D-MAX | 02/2017 | 06/2020 | Ute | TF | 4JJ1-TCX | 3.0L | Diesel | CRDi | RWD |
| ISUZU | D-MAX | 11/2015 | 06/2020 | Ute | TFR | 4JJ1-TCX | 3.0L | Diesel | SX SPACE CAB | Automatic/Manual RWD |
| ISUZU | D-MAX | 06/2012 | 05/2020 | Cab Chassis | TFR, TFS | 4JJ1-TC | 3.0L | Diesel | CRDi | AWD |
| ISUZU | D-MAX | 06/2012 | 05/2020 | Cab Chassis | TFR, TFS (TFR85J) | 4JJ1-TC | 3.0L | Diesel | CRDi | RWD |
| ISUZU | D-MAX | 06/2012 | 05/2020 | Cab Chassis | TFR, TFS | 4JJ1-TC | 3.0L | Diesel | CRDi | RWD |
| ISUZU | D-MAX | 06/2012 | 05/2020 | Ute | TFR, TFS (TFS85J) | 4JJ1-TC | 3.0L | Diesel | CRDi | AWD |
| ISUZU | D-MAX | 06/2012 | 06/2020 | Ute | TFS | 4JJ1-TCX | 3.0L | Diesel | EX, SX | Automatic/Manual 4WD |
| ISUZU | D-MAX | 06/2012 | 06/2020 | Ute | TFR | 4JJ1-TCX | 3.0L | Diesel | LS HI-RIDE, LS-T HIGH-RIDE, LS-TERRAIN HI-RIDE, LS-U HI-RIDE, SX, SX HI-RIDE | Automatic/Manual RWD |
| ISUZU | D-MAX | 06/2012 | 06/2020 | Ute | TFS | 4JJ1-TCX | 3.0L | Diesel | LS-M, LS-M HI-RIDE, LS-T 01/19, LS-TERRAIN HI-RIDE, LS-U, LS-U HI-RIDE, SX, SX HI-RIDE, X-RIDER LIMITED EDTION, X-RUNNER | Automatic/Manual 4WD |
| ISUZU | D-MAX | 06/2012 | 06/2020 | Ute | TFS | 4JJ1-TCX | 3.0L | Diesel | LS-U, LS-U HI-RIDE, SX SPACE CAB | Automatic/Manual 4WD |
| ISUZU | D-MAX | 06/2012 | 06/2020 | Ute | TFR | 4JJ1-TCX | 3.0L | Diesel | SX, SX HI-RIDE, SX LOW-RIDE | Automatic/Manual RWD |
| ISUZU | D-MAX | 11/2015 | 12/2018 | Ute | TF | RZ4E-TC | 1.9L | Diesel | 4WD | |
| ISUZU | D-MAX | 11/2015 | 12/2018 | Ute | TF | RZ4E-TC | 1.9L | Diesel | 4WD | |
| ISUZU | D-MAX | 11/2015 | 12/2018 | Ute | TF | RZ4E-TC | 1.9L | Diesel | RWD | |
| ISUZU | D-MAX | 11/2015 | 12/2018 | Ute | TF | RZ4E-TC | 1.9L | Diesel | RWD | |
| ISUZU | D-MAX | 06/2012 | 12/2018 | Ute | TF | 4JK1-TC | 2.5L | Diesel | 4WD | |
| ISUZU | D-MAX | 06/2012 | 12/2018 | Ute | TF | 4JK1-TC | 2.5L | Diesel | 4WD | |
| ISUZU | D-MAX | 06/2012 | 12/2018 | Ute | TF | 4JK1-TC | 2.5L | Diesel | RWD | |
| ISUZU | D-MAX | 06/2012 | 12/2018 | Ute | TF | 4JK1-TC | 2.5L | Diesel | RWD | |
| ISUZU | D-MAX | 06/2012 | 01/2017 | Ute | TF | 4JK1-TC | 2.5L | Diesel | D | AWD |
| ISUZU | D-MAX | 06/2012 | 01/2017 | Ute | TF | 4JK1-TC | 2.5L | Diesel | D | RWD |
| ISUZU | D-MAX | 06/2012 | 12/2016 | Ute | TF | 4JK1-TC | 2.5L | Diesel | Automatic/Manual 4WD | |
| ISUZU | D-MAX | 06/2012 | 12/2016 | Ute | TF | 4JK1-TC | 2.5L | Diesel | Automatic/Manual RWD | |
