TAG Heavy Duty Towbar and Direct Fit Wiring Kit (T4C284-K202)
This TAG Heavy Duty Towbar and Direct Fit Wiring Kit (T4C284-K202) provides a maximum tow capacity of 3000kg and is designed for the Mitsubishi Pajero NS, NT, NW, and NX Series Wagon (11/2006 - 06/2023). This is a basic 1-piece design towbar that is partially concealed when fitted and requires a bumper cut out. The wiring kit features a Dash Button Reverse Sensor Cut Off.
Important Towing Note:
Consult your Vehicle Manual for Maximum Towing Capacity as this can be different between models. The towbar is compliant with all Vehicles listed, with a Tow Rating of **3000kg/250kg** (Tow Capacity/Ball Weight).
This Kit Includes:

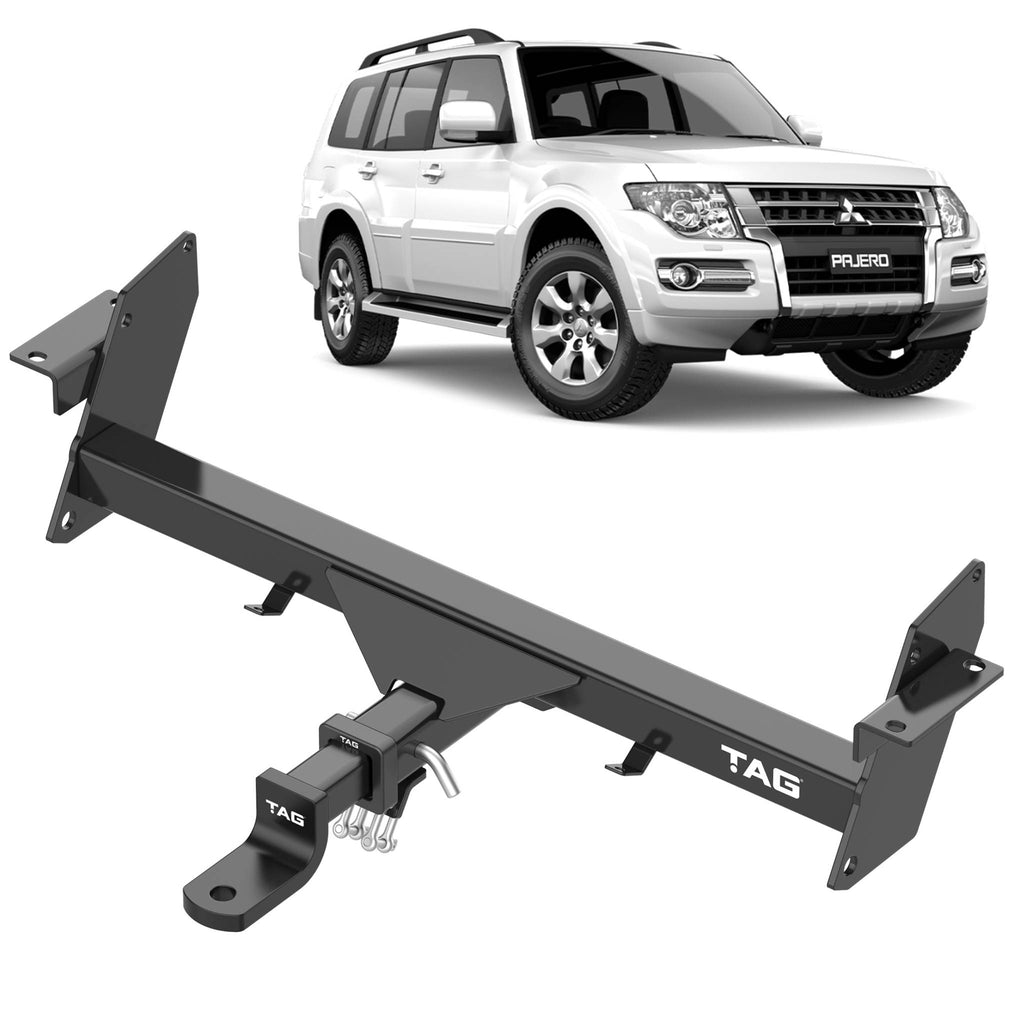

- TAG Heavy Duty Towbar (T4C284)

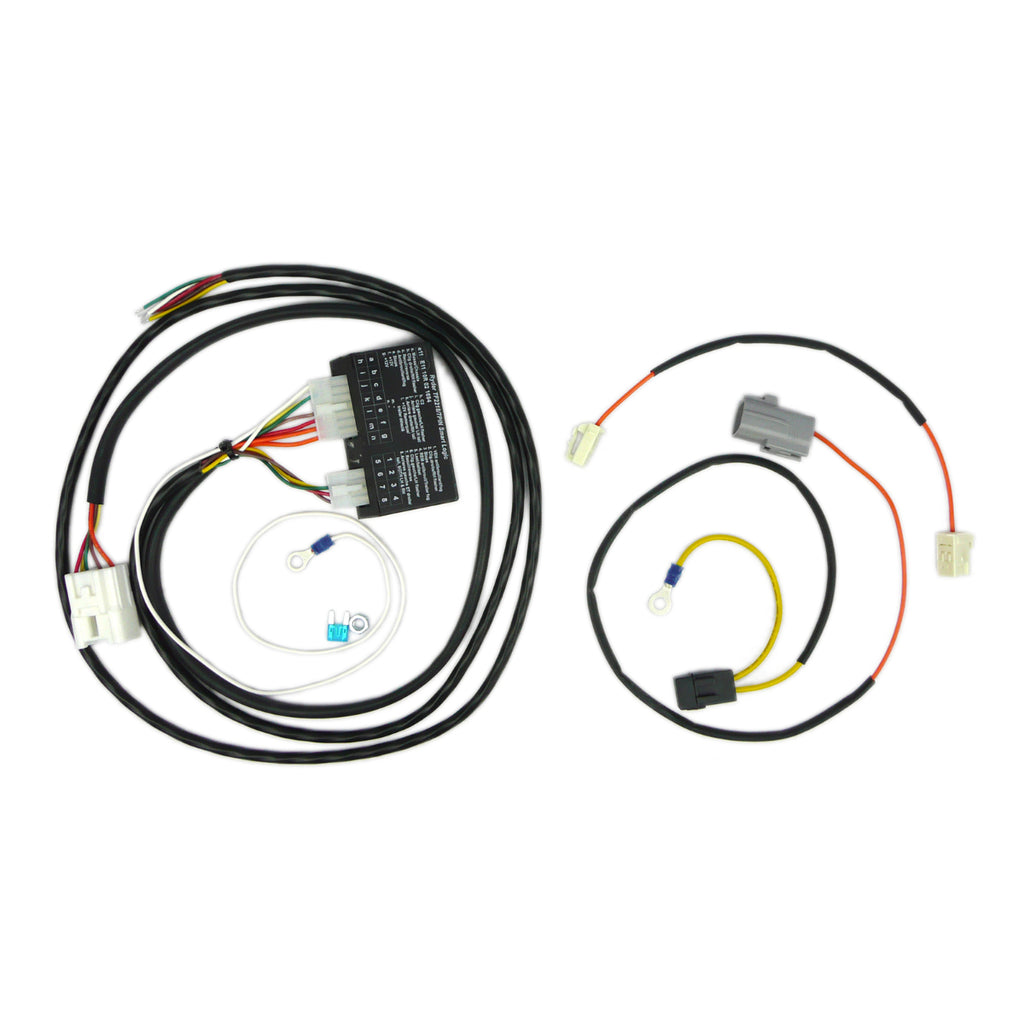

- TAG Direct Fit Wiring Harness (UNT268)
- TAG 7 Pin Flat Socket - Vehicle Side
TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:
- Utilises factory mounting points for ease of fitment
- Durable Powder Coated Finish.
- Class 4 Receiver - 50mm x 50mm Hitch
- TAG Limited Lifetime Warranty
- Towbar includes - towball, ballmount, pin & clip and dshackles
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Reverse Sensor Cut Off: Dash Button
- Diagnostic Coding: Not Required
- Fog Cut Off: Not Applicable
- Wiring Option: Direct Fit ECU
- Fitting Time [min.] (Wiring): 45 (UNT268)
- Fitting Time [min.] (Towbar): 60 (T4C284)
- Style: 7 Pin Flat
- Type: Plugs & Sockets
- Towbar Class: Heavy Duty
- Towbar Capacity [kg]: 3000
- Ball Weight [kg]: 250
- Tow Ball Mount: L4240
- Coating: Enamel Immersion Dipped
- Hitch Type: 50mm Square Hitch Receiver
- Bumper Removed During Fitment: No
- Bumper Cut Out Required: Yes
- Exposure: Partially Concealed
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Vehicle Applications (Full Details)
| Make | Model | Year Start - Year End | Body Type | Engine Details | Drivetrain | Trim Level |
|---|---|---|---|---|---|---|
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | SUV | 4M41 | 3.2L | Diesel | AWD | [N/A] |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | SUV | 4m41T | 3.2L | Diesel | Automatic 4WD | EXCEED, GLS, GLX GLX5 |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | Wagon | 4M41 | 3.2L | Diesel | AWD | DI-D |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | Wagon | 4M41 | 3.2L | Diesel | AWD | TD |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | SUV | 4M41T | 3.2L | Diesel | Automatic 4WD | [N/A] |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | Wagon | 4M41 | 3.2L | Diesel | AWD | DI-D |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | Wagon | 4M41 | 3.2L | Diesel | AWD | DI-D |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | SUV | 4M41T | 3.2L | Diesel | Manual 4WD | [N/A] |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | Wagon | 6G75 | 3.8L | Petrol | AWD | i |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | Wagon | 6G75 | 3.8L | Petrol | AWD | V6 |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | Wagon | 6G75 | 3.8L | Petrol | AWD | V6 |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | Wagon | 6G75 | 3.8L | Petrol | Automatic 4WD | [N/A] |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | Wagon | 6G75 | 3.8L | Petrol | Automatic 4WD | R| X |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | Wagon | 4M41T | 3.2L | Diesel | Automatic 4WD | R| X |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | Wagon | 4M41 | 3.2L | Diesel | AWD | DI-D |
| MITSUBISHI | PAJERO | 11/2006 - 03/2021 | Wagon | 4M41 | 3.2L | Diesel | AWD | DI-D |
