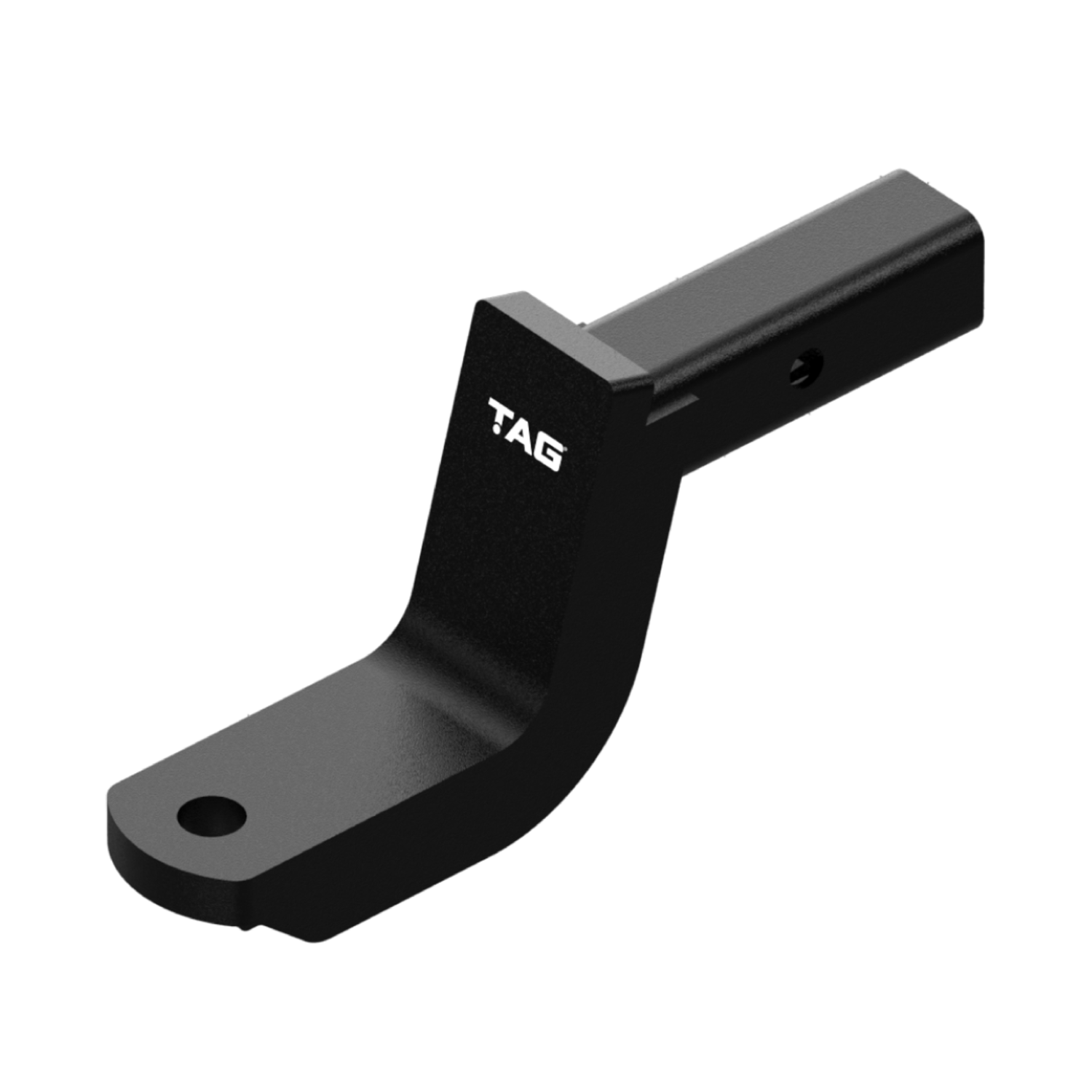

TAG - Tow Ball Mount - 254mm Long, 88mm Drop, 50mm Square Hitch
Couldn't load pickup availability
TAG - Tow Ball Mount - 254mm Long, 88mm Drop, 50mm Square Hitch
Description
Description
A great option for those seeking a longer hitch than the L4171, with an additional 35mm in length to accommodate accessories that may impede the hitch positioning.
TAG Tow Ball Mounts are manufactured using drop forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and is available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch-marked and powder-coated for a premium, durable finish.
- 254mm Long (Hitch Pin Hole to Tow Ball Hole)
- 105° Tongue Face
- Drop: 88mm
- Can be mounted in Drop Mode Only
- 3500kg Gross Trailer Weight
- 350kg Ball Weight
- Durable Powder-Coated Finish
- ADR 62/02 Compliant
- TAG Limited Lifetime Warranty
Tow Ball, R-Clip & Hitch Pin sold separately.
Technical Specs
- Tow Ball Mount Class: Heavy Duty (Class 4)
- Gross Trailer Weight: 3500
- Ball Weight: 350kg
- Hitch Type: Heavy Duty 50mm Square
- Drop: 88mm
- Rise: Cannot be used in Rise Mode
- Length: 376
- Length (Pin To Ball): 254mm
- Front to Pin (mm): 291
- Back to Pin (mm): 85
- Tongue Face: 105°
- Coating: Powder Coated
