TAG - Ford Ranger PX2 PX3 (2015 - 2022), Ranger Next Gen (2022 - on), Ford Everest UA/UA MkII (2015 - 2022), Volkswagen Amarok NF (2022 - on) - Direct Fit Wiring Harness

The TAG Towbar Wiring Kit is specifically developed in partnership with TAG® Towbar and Brink® Towbars for vehicles in the Asia-Pacific region. It offers a safe, easy, and reliable solution for powering trailer or caravan lights, integrating seamlessly without harming your vehicle’s electronics.

• Hardwired and spliced into the vehicle bumper harness for Next Gen Everest
• No special tools or soldering required
• Compatible with Trailer Stability Programming (TSP), Lane Collision Avoidance systems, Park Distance Controls (PDC)
• Does not interfere with brake lights, turning signals, or live wire connections

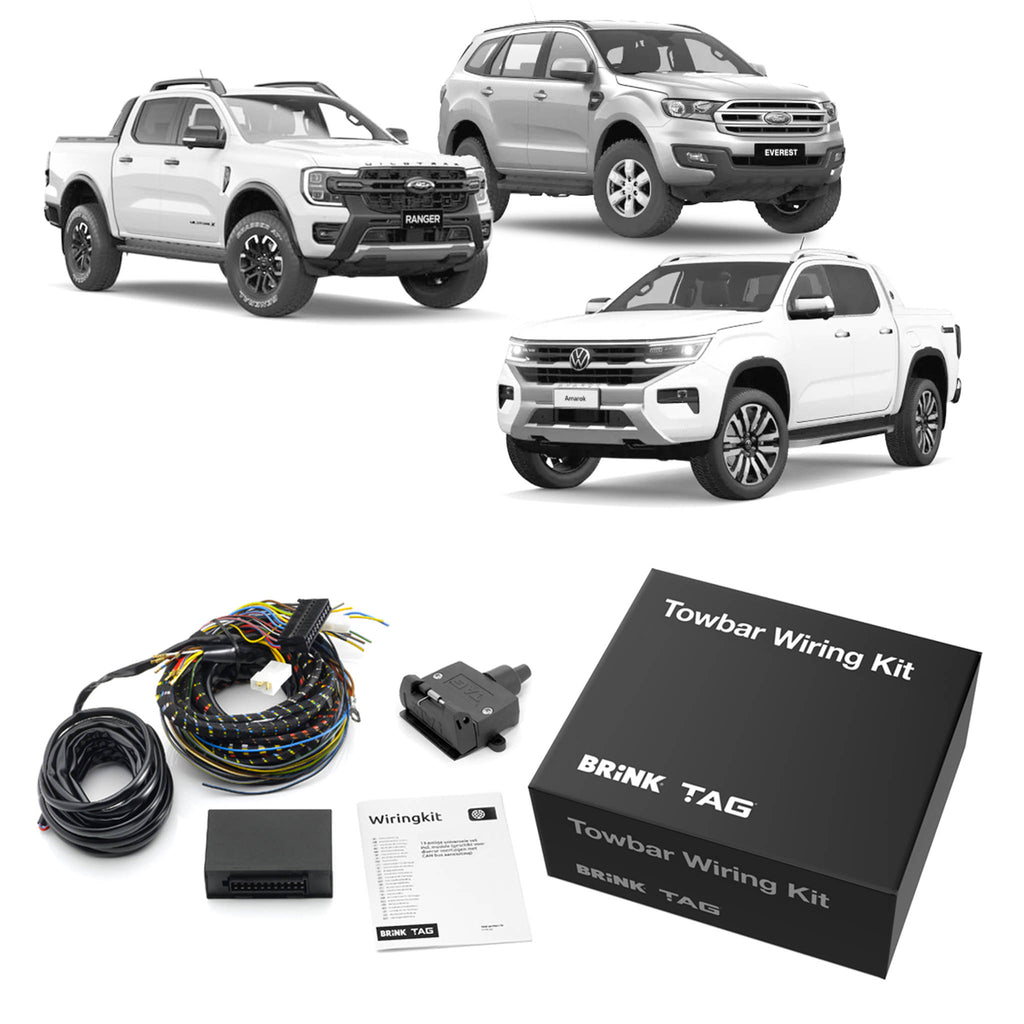

• Each wiring kit includes the harness, ECU module, 7-Pin Flat Socket, installation instructions, and connection guide
• Ensures full trailer light functionality with no fault codes (coding required for all factory sensors and features)

Please Note: For full integration with factory sensors and features, diagnostic coding is required. For reverse sensor cut-off, coding is also required. Fog cut-off is automatic.

Technical Specs

• Wiring Option: CANBUS Direct Fit Wiring
• Diagnostic Coding: Optional For All Features
• Reverse Sensor Cut Off:Coding Required
• Fitting Time Approx: 1 hr
• Fog Cut Off: Automatic
• Plug Connection: 7 Pin Flat Socket



Vehicles Fitment Information

FORD EVEREST UA, UA II

• Years: 2015-2022
• Body: Wagon
• Engines: P5-AT 3.2L TDCi
• Cylinders: 5

FORD EVEREST UA

• Years: 2016
• Body: Wagon
• Engines: P5AT 3.2L
• Variant: TREND
• Cylinders: 5

FORD EVEREST UA

• Years: 2015
• Body: Wagon
• Engines: P5AT 3.2L
• Transmission: Manual
• Cylinders: 5

FORD RANGER T6.2

• Years: 2022
• Body: Ute
• Engines: 2.0L
• Variant: XLT
• Transmission: Automatic
• Cylinders: 4

FORD RANGER T6.2

• Years: 2022
• Body: Ute
• Engines: 2.0L
• Variant: XL HI-RIDER
• Transmission: Automatic
• Cylinders: 4

FORD RANGER T6.2

• Years: 2022
• Body: Cab Chassis
• Engines: 3.0L
• Variant: XLT, SPORT, WILDTRAK
• Transmission: Automatic
• Cylinders: 6

FORD RANGER T6.2

• Years: 2022
• Body: Ute
• Engines: 2.0L
• Variant: XL
• Transmission: Automatic
• Cylinders: 4

FORD RANGER T6.2

• Years: 2022
• Body: Ute
• Engines: 3.0L
• Variant: XLT, SPORT, WILDTRAK
• Transmission: Automatic
• Cylinders: 6

FORD RANGER T6.2

• Years: 2022
• Body: Ute
• Engines: 2.0L
• Variant: SPORT, WILDTRAK, XL, XLS, XLT
• Transmission: Automatic
• Cylinders: 4

FORD RANGER T6.2

• Years: 2022
• Body: Ute
• Engines: 2.0L
• Variant: XLS, XLT HI-RIDER
• Transmission: Automatic
• Cylinders: 4

FORD RANGER T6.2

• Years: 2022
• Body: Ute
• Engines: 2.0L
• Variant: XL, HI_RIDER
• Transmission: Automatic
• Cylinders: 4

FORD RANGER T6.2

• Years: 2022
• Body: Cab Chassis
• Engines: 3.0L
• Variant: XLT, SPORT, WILDTRAK
• Transmission: Automatic
• Cylinders: 6

FORD RANGER T6.2

• Years: 2022
• Body: Cab Chassis
• Engines: 2.0L
• Variant: XL
• Transmission: Automatic
• Cylinders: 4

FORD RANGER T6.2

• Years: 2022
• Body: Cab Chassis
• Engines: 2.0L
• Variant: XL HI-RIDER
• Transmission: Automatic
• Cylinders: 4

FORD RANGER T6.2

• Years: 2022
• Body: Ute
• Engines: 3.0L
• Variant: XLT, SPORT, WILDTRAK
• Transmission: Automatic
• Cylinders: 6

FORD RANGER T6.2

• Years: 2022
• Body: Ute
• Engines: 2.0L
• Variant: XLS, XLT HI-RIDER
• Transmission: Automatic
• Cylinders: 4

FORD RANGER T6.2

• Years: 2022
• Body: Ute
• Engines: 2.0L
• Variant: SPORT, WILDTRAK, XL, XLS, XLT
• Transmission: Automatic
• Cylinders: 4

FORD RANGER T6.2

• Years: 2022
• Body: Cab Chassis
• Engines: 2.0L
• Variant: XL
• Transmission: Automatic
• Cylinders: 4

FORD RANGER T6.2

• Years: 2022
• Body: Cab Chassis
• Engines: 2.0L
• Variant: XL HI-RIDER
• Transmission: Automatic
• Cylinders: 4

FORD RANGER T6.2

• Years: 2022
• Body: Cab Chassis
• Engines: 2.0L
• Variant: XL
• Transmission: Automatic
• Cylinders: 4

FORD RANGER PY

• Years: 2022
• Body: Cab Chassis
• Engines: YN2S 2.0L
• Cylinders: 4

FORD RANGER PY

• Years: 2022
• Body: Cab Chassis
• Engines: P02S 2.0L
• Cylinders: 4

FORD RANGER PY

• Years: 2022
• Body: Cab Chassis
• Engines: P02S 2.0L
• Cylinders: 4

FORD RANGER PY

• Years: 2022
• Body: Cab Chassis
• Engines: YN2S 2.0L
• Cylinders: 4

FORD RANGER PY

• Years: 2022
• Body: Ute
• Engines: P02S 2.0L
• Cylinders: 4

FORD RANGER PY

• Years: 2022
• Body: Ute
• Engines: P02S 2.0L
• Cylinders: 4

FORD RANGER PY

• Years: 2022
• Body: Ute
• Engines: YN2S 2.0L
• Cylinders: 4

FORD RANGER PY

• Years: 2022
• Body: Ute
• Engines: YN2S 2.0L
• Cylinders: 4

FORD RANGER PY

• Years: 2022
• Body: Cab Chassis
• Engines: BF2S 3.0L
• Cylinders: 6

FORD RANGER PY

• Years: 2022
• Body: Cab Chassis
• Engines: BF2S 3.0L
• Cylinders: 6

FORD RANGER PX2

• Years: 2015-2016
• Body: Cab Chassis
• Engines: P4AT 2.2L
• Cylinders: 4

FORD RANGER PX2

• Years: 2015-2016
• Body: Ute
• Engines: P4AT 2.2L
• Cylinders: 4

FORD RANGER PX2

• Years: 2015-2016
• Body: Cab Chassis
• Engines: P4AT 2.2L
• Cylinders: 4

FORD RANGER PX2

• Years: 2015-2016
• Body: Ute
• Engines: P4AT 2.2L
• Cylinders: 4

FORD RANGER PX2

• Years: 2015-2018
• Body: Cab Chassis
• Engines: P5AT 3.2L
• Cylinders: 5

FORD RANGER PX2

• Years: 2015-2016
• Body: Ute
• Engines: P5AT 3.2L
• Cylinders: 5

FORD RANGER PX2

• Years: 2015-2016
• Body: Ute
• Engines: P5AT 3.2L
• Cylinders: 5

FORD RANGER PX2

• Years: 2016-2018
• Body: Cab Chassis
• Engines: P5AT 3.2L with DPF
• Cylinders: 5

FORD RANGER PX2

• Years: 2016-2018
• Body: Ute
• Engines: P5AT 3.2L with DPF
• Cylinders: 5

FORD RANGER PX2

• Years: 2016-2018
• Body: Ute
• Engines: P5AT 3.2L with DPF
• Cylinders: 5

FORD RANGER PX (PX2, PX3)

• Years: 2015-2022
• Body: Ute
• Engines: P4-AT 2.2L TDdi
• Cylinders: 4

FORD RANGER PX (PX2, PX3)

• Years: 2015-2022
• Body: Ute
• Engines: P4-AT 2.2L TDdi
• Cylinders: 4

FORD RANGER PX2

• Years: 2015-2018
• Body: Cab Chassis
• Engines: 2.2L with DPF
• Cylinders: 4

FORD RANGER PX2

• Years: 2015-2018
• Body: Cab Chassis
• Engines: 2.2L with DPF
• Cylinders: 4

FORD RANGER PX2

• Years: 2016-2018
• Body: Ute
• Engines: P4AT 2.2L with DPF
• Cylinders: 4

FORD RANGER PX2

• Years: 2016-2018
• Body: Ute
• Engines: P4AT 2.2L with DPF
• Cylinders: 4

FORD RANGER PX (PX2, PX3)

• Years: 2015-2022
• Body: Cab Chassis
• Engines: P4AT 2.2L
• Variant: XL
• Transmission: Manual
• Cylinders: 4

FORD RANGER PX (PX2, PX3)

• Years: 2015-2022
• Body: Ute
• Engines: P4AT 2.2L
• Variant: XL
• Transmission: Manual
• Cylinders: 4

FORD RANGER PX2

• Years: 2015-2016
• Body: Cab Chassis
• Engines: P4AT 2.2L
• Variant: XL Hi Rider
• Transmission: Automatic
• Cylinders: 4

FORD RANGER PX2

• Years: 2015-2016
• Body: Cab Chassis
• Engines: P4AT 2.2L
• Variant: XL
• Transmission: Automatic/Manual
• Cylinders: 4

FORD RANGER PX2

• Years: 2015-2016
• Body: Ute
• Engines: P4AT 2.2L
• Variant: XL, XLS
• Transmission: Automatic/Manual
• Cylinders: 4

FORD RANGER PX2

• Years: 2015-2022
• Body: Cab Chassis
• Engines: P4AT 2.2L
• Variant: SUPER CAB XL HIRIDER
• Transmission: Manual
• Cylinders: 4

FORD RANGER PX2

• Years: 2015-2016
• Body: Ute
• Engines: P4AT 2.2L
• Variant: XL Hi Rider
• Transmission: Automatic/Manual
• Cylinders: 4

FORD RANGER PX (PX2, PX3)

• Years: 2015-2022
• Body: Cab Chassis
• Engines: P4AT 2.2L
• Variant: XL
• Transmission: Manual
• Cylinders: 4

FORD RANGER PX (PX2, PX3)

• Years: 2016-2022
• Body: Ute
• Engines: P5AT 3.2L
• Variant: XL, XLT, XLS, WILDTRA
• Transmission: Automatic/Manual
• Cylinders: 5

FORD RANGER PX (PX2, PX3)

• Years: 2016-2022
• Body: Cab Chassis
• Engines: P5AT 3.2L
• Variant: XL, SPORT
• Transmission: Automatic/Manual
• Cylinders: 5

FORD RANGER PX (PX2, PX3)

• Years: 2016-2022
• Body: Ute
• Engines: P5AT 3.2L
• Variant: XLT HI-RIDER
• Transmission: Automatic/Manual
• Cylinders: 5

FORD RANGER PX (PX2, PX3)

• Years: 2016-2022
• Body: Ute
• Engines: P4AT 2.2L
• Variant: XL, XLS
• Transmission: Automatic
• Cylinders: 4

FORD RANGER PX (PX2, PX3)

• Years: 2016-2022
• Body: Ute
• Engines: P4AT 2.2L
• Variant: XL HI-RIDER
• Transmission: Automatic
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Cab Chassis
• Engines: P4AT 2.2L
• Variant: XL Low Rider Single Cab
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Cab Chassis
• Engines: P4AT 2.2L
• Variant: XL Hi-Rider
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Cab Chassis
• Engines: P4AT 2.2L
• Variant: XL Hi-Rider Super Cab
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Cab Chassis
• Engines: P4AT 2.2L
• Variant: XL Hi-Rider Double Cab
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: P4AT 2.2L
• Variant: XL Hi-Rider Double Cab
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: P5AT 3.2L
• Variant: XLT Hi-Rider Double Cab
• Cylinders: 5

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: YN2S 2.0L
• Variant: XLT Hi-Rider Double Cab
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Cab Chassis
• Engines: P5AT 3.2L
• Variant: XL Single Cab
• Cylinders: 5

FORD RANGER PX3

• Years: 2018-2022
• Body: Cab Chassis
• Engines: P5AT 3.2L
• Variant: XL Super Cab
• Cylinders: 5

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: P5AT 3.2L
• Variant: XL Super Cab
• Cylinders: 5

FORD RANGER PX3

• Years: 2018-2022
• Body: Cab Chassis
• Engines: P4AT 2.2L
• Variant: XL Double Cab
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: P4AT 2.2L
• Variant:: XL Double Cab
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Cab Chassis
• Engines: P5AT 3.2L
• Variant: XL Double Cab
• Cylinders: 5

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: P5AT 3.2L
• Variant: XL Double Cab
• Cylinders: 5

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: P5AT 3.2L
• Variant: XLS Double Cab
• Cylinders: 5

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: P5AT 3.2L
• Variant: XLT Super Cab
• Cylinders: 5

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: YN2S 2.0L
• Variant: XLT Super Cab
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: P5AT 3.2L
• Variant: XLT Double Cab
• Cylinders: 5

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: YN2S 2.0L
• Variant: XLT Double Cab
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: P5AT 3.2L
• Variant: Wildtrak Double Cab
• Cylinders: 5

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: YN2S 2.0L
• Variant: Wildtrak Double Cab
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: YN2S 2.0L
• Variant: Raptor
• Cylinders: 4

FORD RANGER PX (PX2, PX3)

• Years: 2015-2022
• Body: Cab Chassis
• Engines: P4-AT 2.2L TDdi
• Cylinders: 4

FORD RANGER PX (PX2, PX3)

• Years: 2015-2022
• Body: Cab Chassis
• Engines: P4-AT 2.2L TDdi
• Cylinders: 4

FORD RANGER PX2

• Years: 2016-2018
• Body: Cab Chassis
• Engines: P5AT 3.2L with DPF
• Cylinders: 5

FORD RANGER PX3 RAPTOR

• Years: 2018-2022
• Body: Ute
• Engines: YN2S 2.0L Raptor
• Transmission: Automatic
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: YN2S 2.0L TDCi Bi-Turbo
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: YN2S 2.0L TDCi Bi-Turbo
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: P5AT 3.2L
• Variant: LIMITED
• Transmission: Automatic/Manual
• Cylinders: 5

FORD RANGER PX3

• Years: 2021-2022
• Body: Ute
• Engines: P5AT 3.2L
• Variant: PX3
• Transmission: Automatic/Manual
• Cylinders: 5

FORD RANGER PX3

• Years: 2021-2022
• Body: Ute
• Engines: P5AT 3.2L
• Variant: XLT HI-RIDER
• Transmission: Automatic/Manual
• Cylinders: 5

FORD RANGER PX3

• Years: 2020-2022
• Body: Ute
• Engines: YN2S 2.0L 2.0 TTD 4X4
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: YN2S 2.0L
• Variant: XLT SUPER CAB
• Transmission: Automatic
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: YN2S 2.0L
• Variant: XLT HI-RIDER
• Transmission: Automatic
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: YN2S 2.0L
• Variant: XLT, WILDTRAK, FX4
• Transmission: Automatic
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: YN2S 2.0L
• Variant: XLT HI-RIDER
• Transmission: Automatic
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: YN2S 2.0L
• Variant: REDBACK, WILDTRAK, XLT
• Transmission: Automatic/Manual
• Cylinders: 4

FORD RANGER PX3

• Years: 2018-2022
• Body: Ute
• Engines: YN2S 2.0L
• Variant: SUPER CAB
• Transmission: Automatic/Manual
• Cylinders: 4

FORD RANGER PX3

• Years: 2020-2022
• Body: Ute
• Engines: YN2S 2.0L
• Variant: XLT
• Transmission: Automatic
• Cylinders: 4

FORD RANGER PX3

• Years: 2021-2022
• Body: Cab Chassis
• Engines: YN2S 2.0L
• Variant: XLS SUPER CAB
• Transmission: Automatic
• Cylinders: 4

FORD RANGER PX3

• Years: 2021-2022
• Body: Ute
• Engines: YN2S 2.0L
• Variant: XLT, WILDTRAK, FX4
• Transmission: Automatic
• Cylinders: 4

FORD RANGER PX3

• Years: 2021-2022
• Body: Ute
• Engines: YN2S 2.0L
• Variant: XLT HI-RIDER
• Transmission: Automatic
• Cylinders: 4

VOLKSWAGEN AMAROK NF

• Years: 2022
• Body: Ute
• Engines: DXKB 2.0L TDI405 4MOTION
• Transmission: Automatic
• Cylinders: 4

VOLKSWAGEN AMAROK NF

• Years: 2022
• Body: Ute
• Engines: DXKA 2.0L TDI500 4MOTION
• Transmission: Automatic
• Cylinders: 4

VOLKSWAGEN AMAROK NF

• Years: 2022
• Body: Ute
• Engines: DXWA 3.0L TDI600 4MOTION
• Transmission: Automatic
• Cylinders: 6

VOLKSWAGEN AMAROK NF

• Years: 2022
• Body: Ute
• Engines: DXVA 2.2L TSI452 AVENTURA 4MOTION
• Transmission: Automatic
• Cylinders: 6
