Jaylec - LED Front Direction Indicator Position Lamp
$47.00
Unit price
/
Unavailable
Description
Description

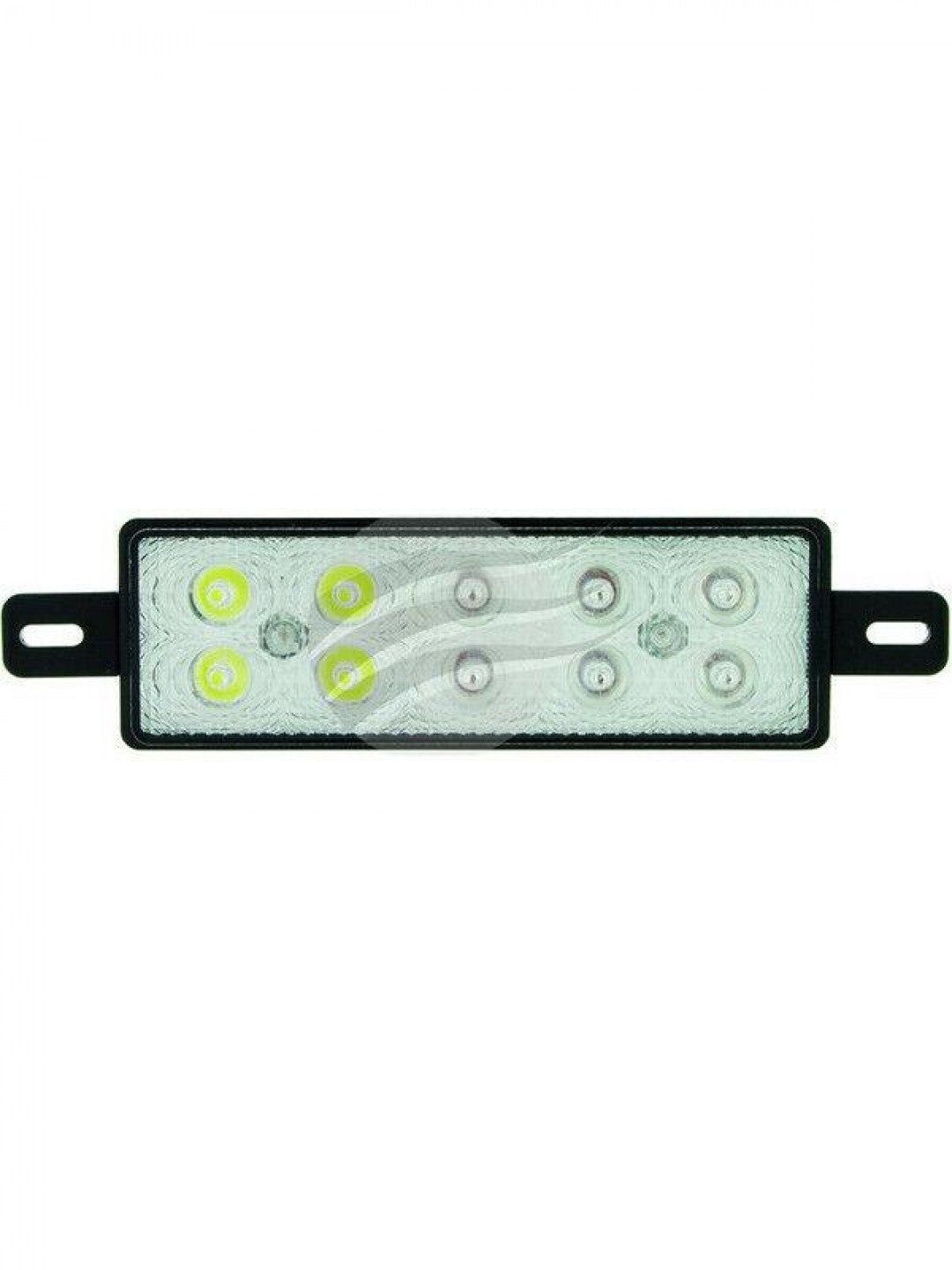

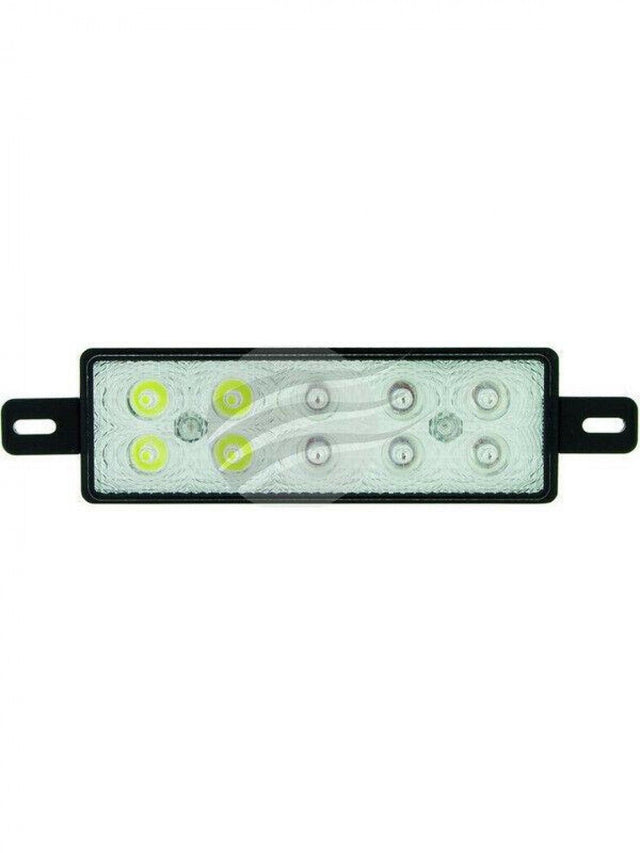

880 Series LED Bullbar Front Position / Front Indicator / Daytime Running Lamp 9 - 33 Volt
Retro fit to existing Bull Bars in 4x4 applications
Amber and White Illumination
4 x High Intensity White LED's in Position / DRL Lamp and 6 x High Intensity Amber LED's in the Indicator Lamp
Clear Optical Polycarbonate Lens with unique Circular lens patterns
Black ABS Plastic Housing with mounting screws included
Tab or Surface Mount- low mounting depth for easy installation
Pre-wired 300mm Lead
Fully encapsulated circuitry
Sealed against Dust and Moisture
0.31amps at 12 Volt Current Draw for Indicator function
0.31amps at 12 Volt Current Draw for DRL function
0.15amps at 12 Volt Current Draw for Front Position function
ADR 6/00 Cat 1 Front Indicator Lamp specifications approved
ADR 76/00 DRL Lamp specifications approved
ADR 49/00 Front Position Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
IP67 Rating
Blister Qty
| Specifications | |
| Colour | Amber / White |
| Type | LED |
| Shape | Rectangular |
| Voltage | Multivolt |
| Mount | Surface |
| Width (mm) | 226 |
| Height (mm) | 56 |
| Depth (mm) | 29 |
