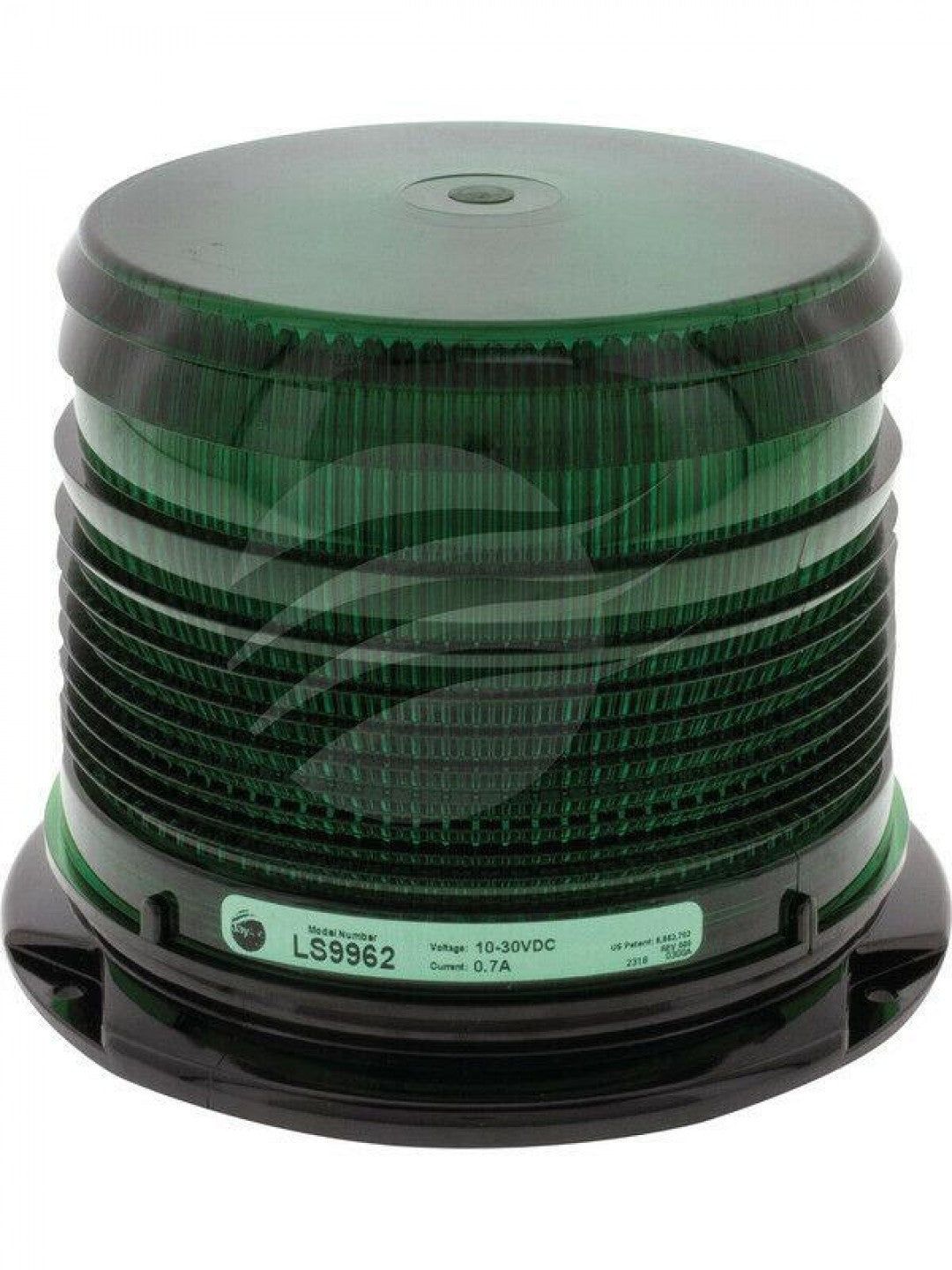

LED Rotating / Strobe Beacon 10 - 30 Volt
24 x Customer Selectable Flash patterns changed via the pattern select wire
22 x Strobe Patterns, 2 x Rotating Patterns and Steady Burn
Includes S-Link Synchronisation function for multiple beacon applications
Green Illumination with High/Low intensity (manual or automatic)
8 x 1 Watt Halo High Intensity Warm White LED's
Green Optical PMMA Polycarbonate Lens with O-Ring Seal - Twist On or Off
Black Powder Coated Die-Cast Aluminium Housing
3 Bolt Mount or 25mm or 1" Pole Mount
Fully encapsulated circuitry
Fully sealed against Dust and moisture
5 x Wire
High/Low-Illumination wire and S-Link Synchronisation wires
250mm Long Lead
0.7amps at 12 Volt and 0.35amps at 24 Volt Current Draw
10,000 Hours LED Lifespan
SAE J845 Class I and CA13 Approval
IP67 Rating
Manufactured in the USA
2 Year Warranty
Spare Parts:- LS9997 Blue PC Lens, LS9998 Green PC Lens, LS9999
Battery Positive
Earth
External Pattern Select
|
| Specifications |
| Colour |
Green |
| Type |
LED |
| Pattern |
Other |
| Voltage |
Multivolt |
| Beam Type |
|
| Rows |
|
| No. of LED |
8 |
| Mount |
3 Bolt |
| Width (mm) |
165 |
| Height (mm) |
122 |
| Depth (mm) |
