Jaylec | SKU:
LS9601
Jaylec - LED Mini Lightbar 12/24 Volts Permanent
$386.20
$386.99
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Jaylec - LED Mini Lightbar 12/24 Volts Permanent is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Jaylec - LED Mini Lightbar 12/24 Volts Permanent
$386.20
$386.99
Unit price
/
Unavailable
Description
Description
Jaylec Amber LED Rotating / Strobe Microbar 12/24 Volt
23 x Combined Adjustable Rotating and Strobe patterns; 21 x Strobe, 1 x Rotating and plus 1 x Steady On
23 x Adjustable Flash patterns are customer selectable and are changed via pattern select wire
Synchronisation function for multiple Lightbar applications that can alternate flash pattern or simultaneously flash patterns
30 x 1 Watt High Intensity Amber LED's, Clear Lens
Low power function for night time use
Current Draw: 2.0amp @ 12 Volt and 1.8amp @ 24 Volt
Black durable ABS Plastic Housing
Flange base for permanent mounting with low profile brackets
3 x 400mm Wire; Battery Positive, Earth and External Pattern Select / Synchronisation wires
100,000 Hours LED Lifespan
Fully encapsulated Circuitry
Reverse Polarity protected
Fully sealed against dust and moisture
Designed for vibration resistance and heat dissipation
RFI Radio frequency interference suppressed
ECE R65, R10 and SAE J845 Class I compliant
IP65 Rating
3 Years Warranty
Ideal for Construction and Commercial applications
Spare Parts:-
LS9609 Low Profile Mounting Bracket
_

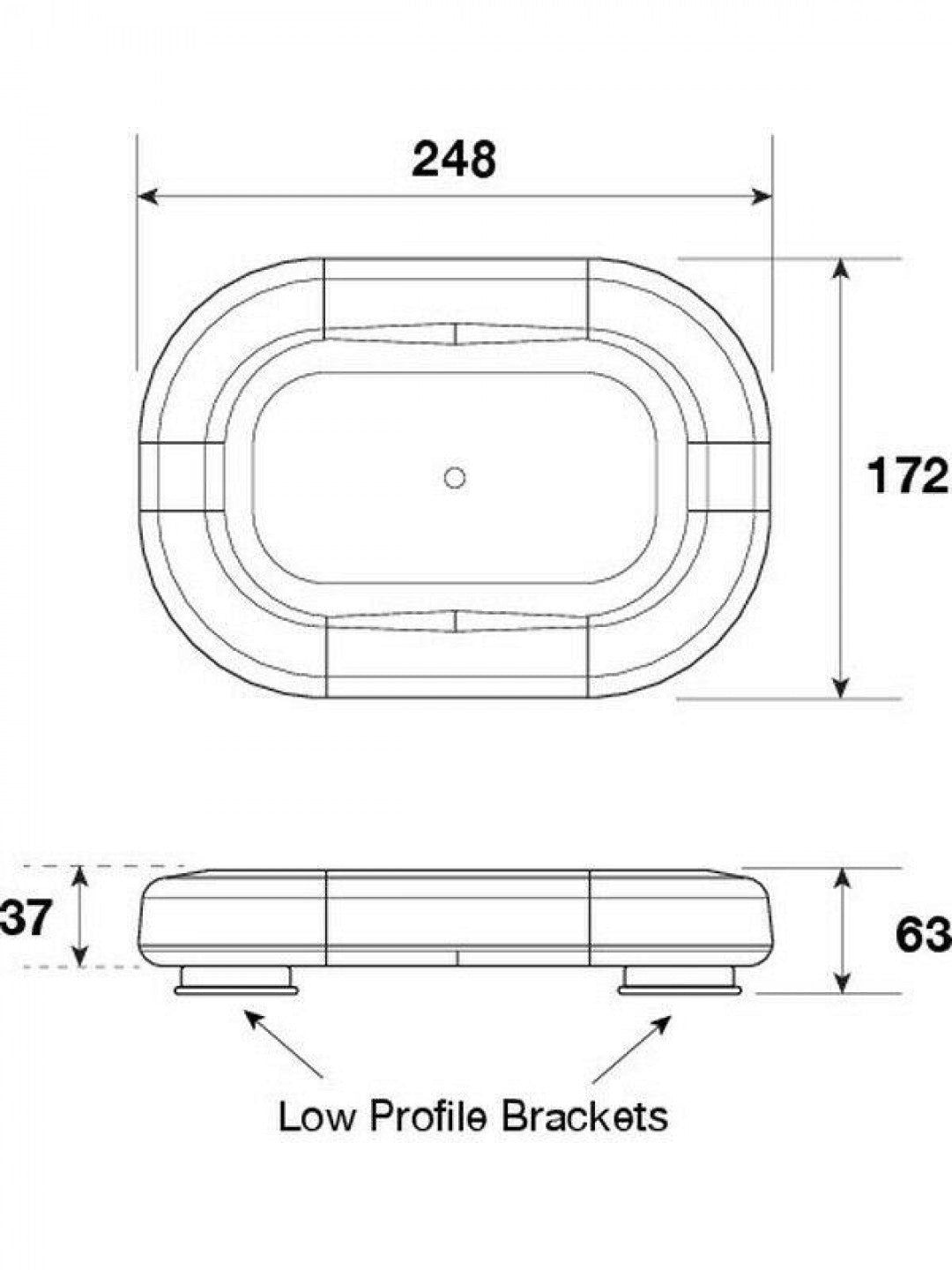

| Specifications | |
| Type | LED |
| Pattern | Other |
| Shape | Rectangular |
| Voltage | 12/24V |
| No. of LED | Other |
| Mount | Surface |
| Width (mm) | 248 |
| Height (mm) | 63 |
| Depth (mm) | 172 |
