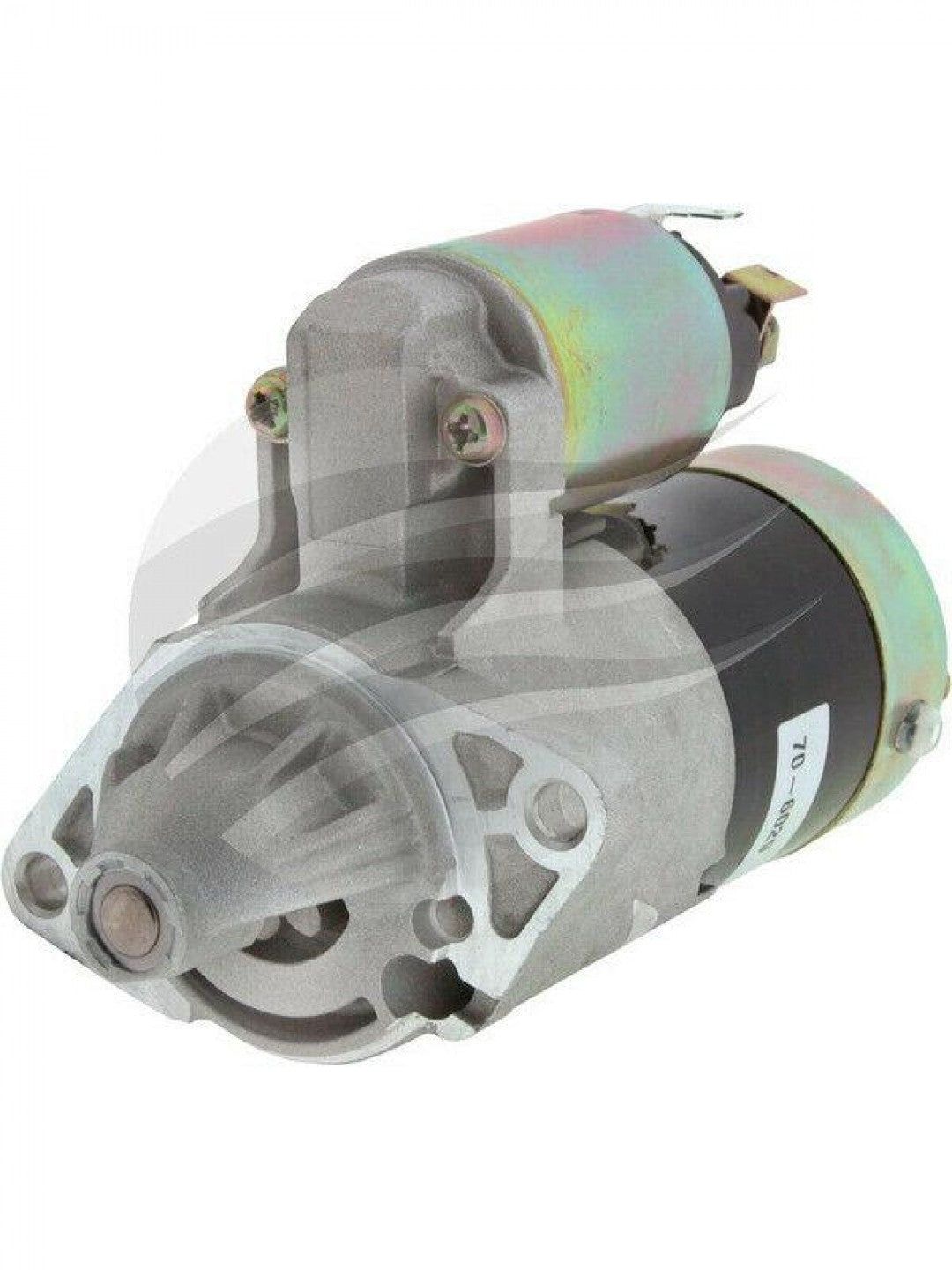

Jaylec - Starter 12 Volts Suzuki Baleno Cruze M15A Ignis, Swift G16B Eng

Roll over image to zoom in Click on image to zoom

Jaylec - Starter 12 Volts Suzuki Baleno Cruze M15A Ignis, Swift G16B Eng

Name: Jaylec - Starter 12 Volts Suzuki Baleno Cruze M15A Ignis, Swift G16B Eng
Brand: Jaylec
SKU: 70-6029
Price: 262.0 AUD
Availability: OutOfStock

JaylecSKU: 70-6029

Price:

$262.00

Quantity:

Share this product

Specifications
Voltage	12V
Kilowatt	1.4kW
Number of Teeth	8T
Pinion Diameter	28mm
Rotation	CW
Pinion at Rest	5mm
Flange Diameter	66mm
Mount Hole Center to Center	105mm
Mount Hole Diameter	9mm
Overall Length	207mm
Oil Sealed
Series
Ground	NEGATIVE
Housing Index	FIXED
Weight (Kg)

Cross-reference parts

3110083031
1A5118400
M001T74583ZC
M001T72483ZC
M003T34781
M3T38981
M003T34782
M1T72481ZC
M001T74583
M1T74583ZC
M001T72481ZC
M1T72483
M3T34781
M001T72481
M003T38981
M1T74581
M1T72481
M1T72483ZC
M001T74581
M003T41781
M3T34782
M1T74583
M001T72483
3110060A20
31100A83010
3110083010
3110083030
3110083011
31100A83031
3110060AB2
3110060A13
3110060A12
3110082021
3110060AC2
3110083021
3110060A10000
3110060A20000
3110060A10
