SKU:
70-3473
Sold out

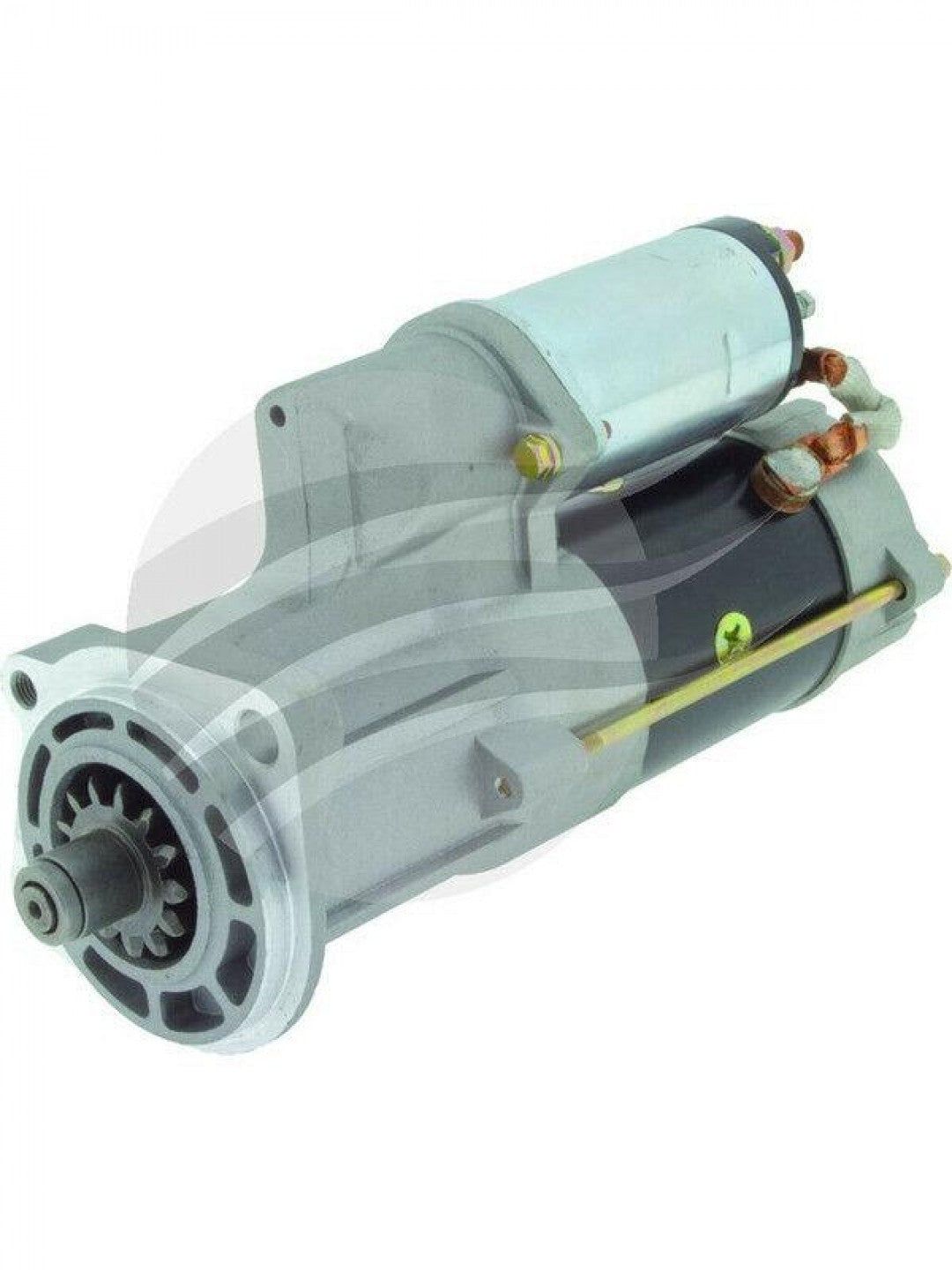

Jaylec - Starter 24 Volts 5.0Kw 13T Isuzu 4Hk1-Tc 4Hk1T Sumitomo
$842.20
$842.99
Unit price
/
Unavailable
Low Stock: Call to Confirm
Tax included
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
| Specifications | |
| Voltage | 24V |
| Kilowatt | 5.5kW |
| Number of Teeth | 13T |
| Pinion Diameter | 46mm |
| Rotation | CW |
| Pinion at Rest | 15mm |
| Flange Diameter | 90mm |
| Mount Hole Center to Center | 114 x 66 x 63mm |
| Mount Hole Diameter | M10- 13mm |
| Overall Length | 306mm |
| Oil Sealed | |
| Series | |
| Ground | NEGATIVE |
| Housing Index | FIXED |
| Weight (Kg) |
