Please check and replace ignition switch prior to fitting new starter motor
The switch is a common failure with intermittent sticking and causing the starter to hold in mesh.
Failure to do this may result in warranty being void.
|

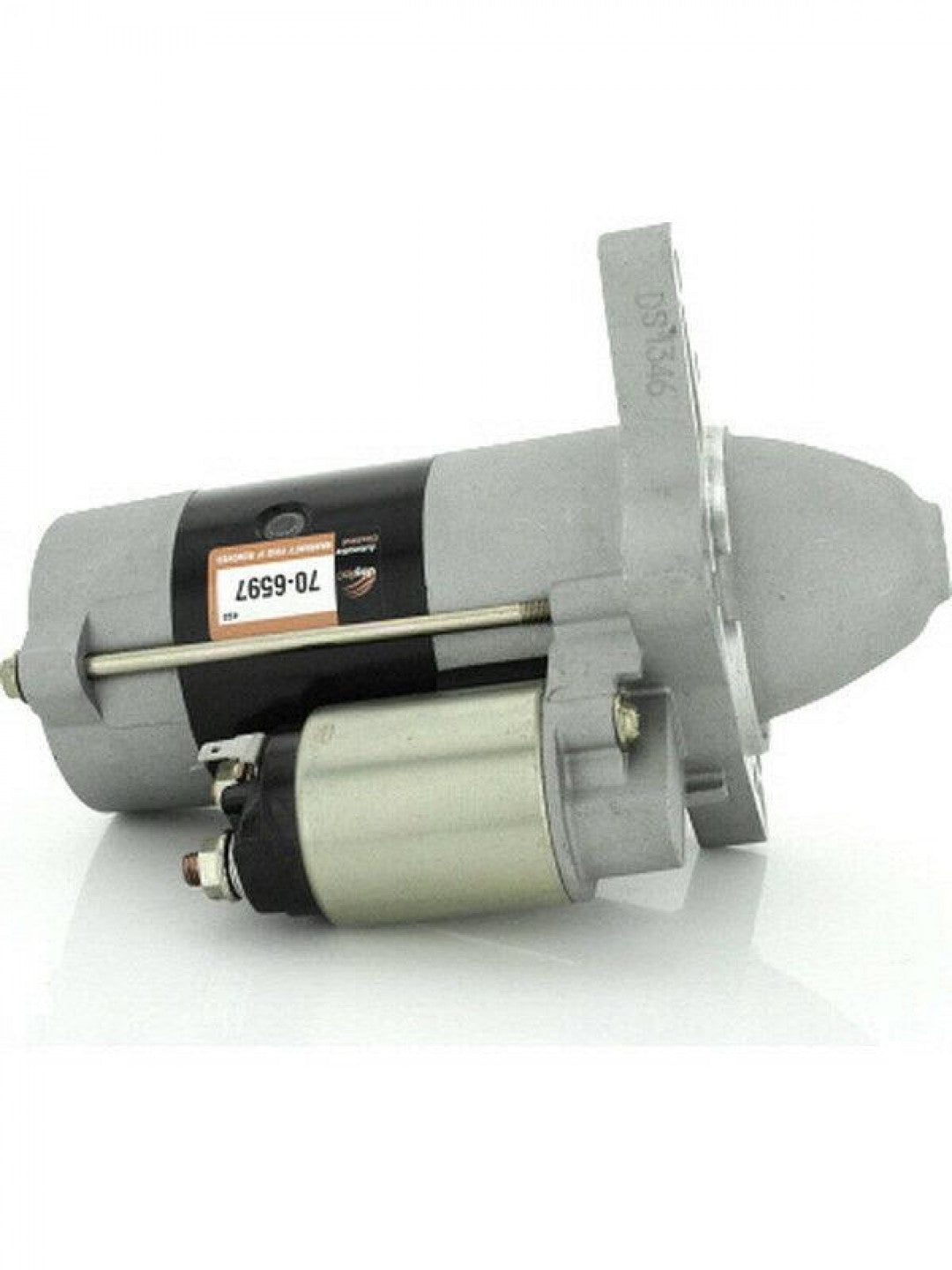

| Specifications |
| Voltage |
12V |
| Kilowatt |
2.2kW |
| Number of Teeth |
10T |
| Pinion Diameter |
32mm |
| Rotation |
CW |
| Pinion at Rest |
17mm |
| Flange Diameter |
82mm |
| Mount Hole Center to Center |
137 x 94 x 75mm |
| Mount Hole Diameter |
M10 |
| Overall Length |
227mm |
| Oil Sealed |
|
| Series |
|
| Ground |
NEGATIVE |
| Housing Index |
FIXED |
| Weight (Kg) |
Cross-reference parts
- WL8118400
,- WL9118400
,- WL0218400
,- M2T87271
,- M002T87271
,- M002T87271ZT
,- M2T87271ZT
,- 4348654
,- XM3411002AA
,- 3601369
,- XM3411002CA
,- F8RU11000AA
