Jaylec | SKU:
70-6106

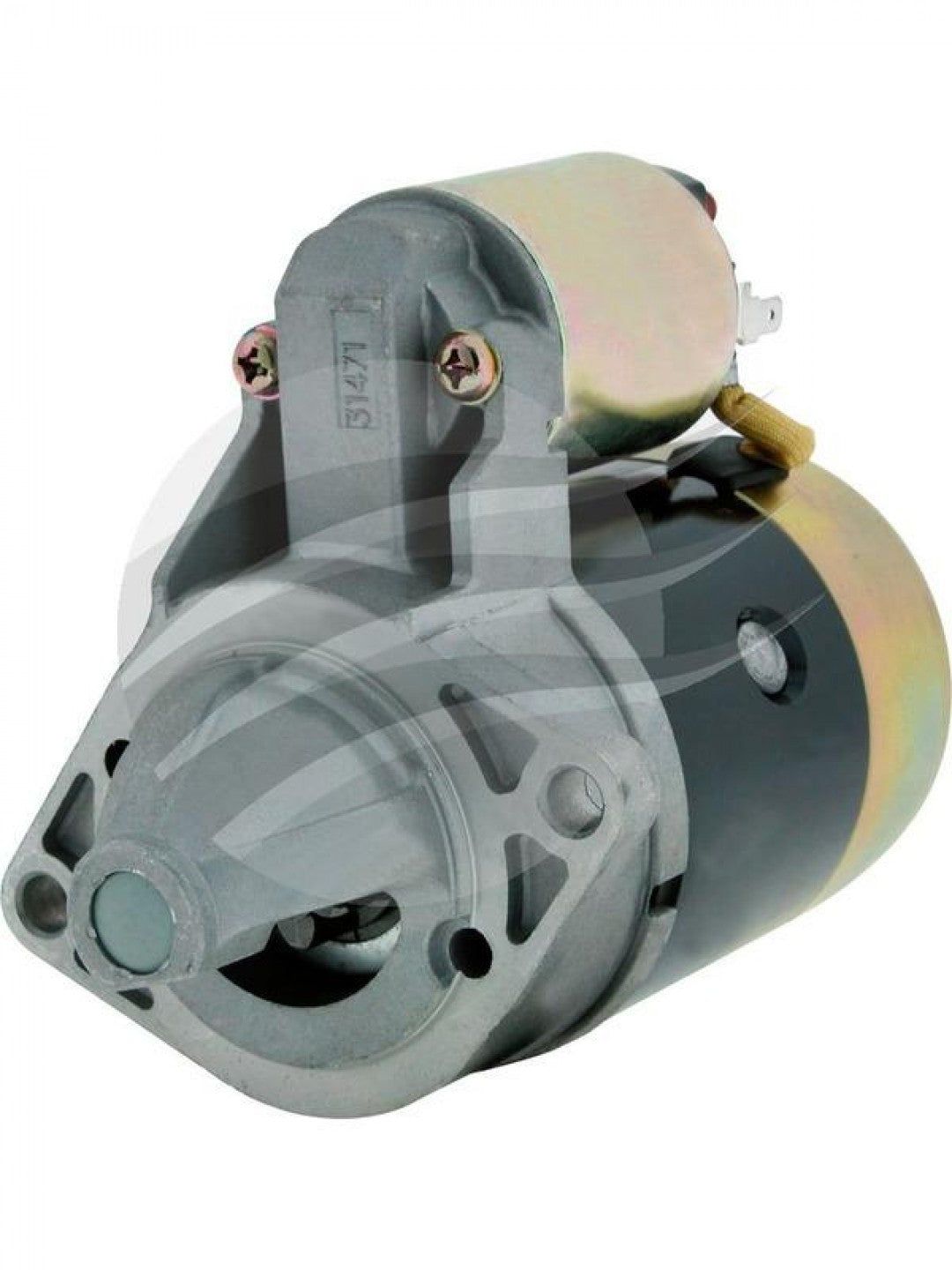

Jaylec - Starter Suzuki Vitara G13B 12 Volts 8Th M15A 1987 - On
$307.90
$307.99
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Jaylec - Starter Suzuki Vitara G13B 12 Volts 8Th M15A 1987 - On is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Jaylec - Starter Suzuki Vitara G13B 12 Volts 8Th M15A 1987 - On
$307.90
$307.99
Unit price
/
Unavailable
Description
Description
| Specifications | |
| Voltage | 12V |
| Kilowatt | 0.8kW |
| Number of Teeth | 8T |
| Pinion Diameter | 28mm |
| Rotation | CW |
| Pinion at Rest | 4mm |
| Flange Diameter | 66mm |
| Mount Hole Center to Center | 105mm |
| Mount Hole Diameter | 9mm |
| Overall Length | 189mm |
| Oil Sealed | |
| Series | |
| Ground | NEGATIVE |
| Housing Index | FIXED |
| Weight (Kg) |
Cross-reference parts
- 3110083031 ,
- 1A5118400 ,
- M001T74583ZC ,
- M001T72483ZC ,
- M003T34781 ,
- M3T38981 ,
- M003T34782 ,
- M1T72481ZC ,
- M001T74583 ,
- M1T74583ZC ,
- M001T72481ZC ,
- M1T72483 ,
- M3T34781 ,
- M001T72481 ,
- M003T38981 ,
- M1T74581 ,
- M1T72481 ,
- M1T72483ZC ,
- M001T74581 ,
- M003T41781 ,
- M3T34782 ,
- M1T74583 ,
- M001T72483 ,
- 3110060A20 ,
- 31100A83010 ,
- 3110083010 ,
- 3110083030 ,
- 3110083011 ,
- 31100A83031 ,
- 3110060AB2 ,
- 3110060A13 ,
- 3110060A12 ,
- 3110082021 ,
- 3110060AC2 ,
- 3110083021 ,
- 3110060A10000 ,
- 3110060A20000 ,
- 3110060A10
