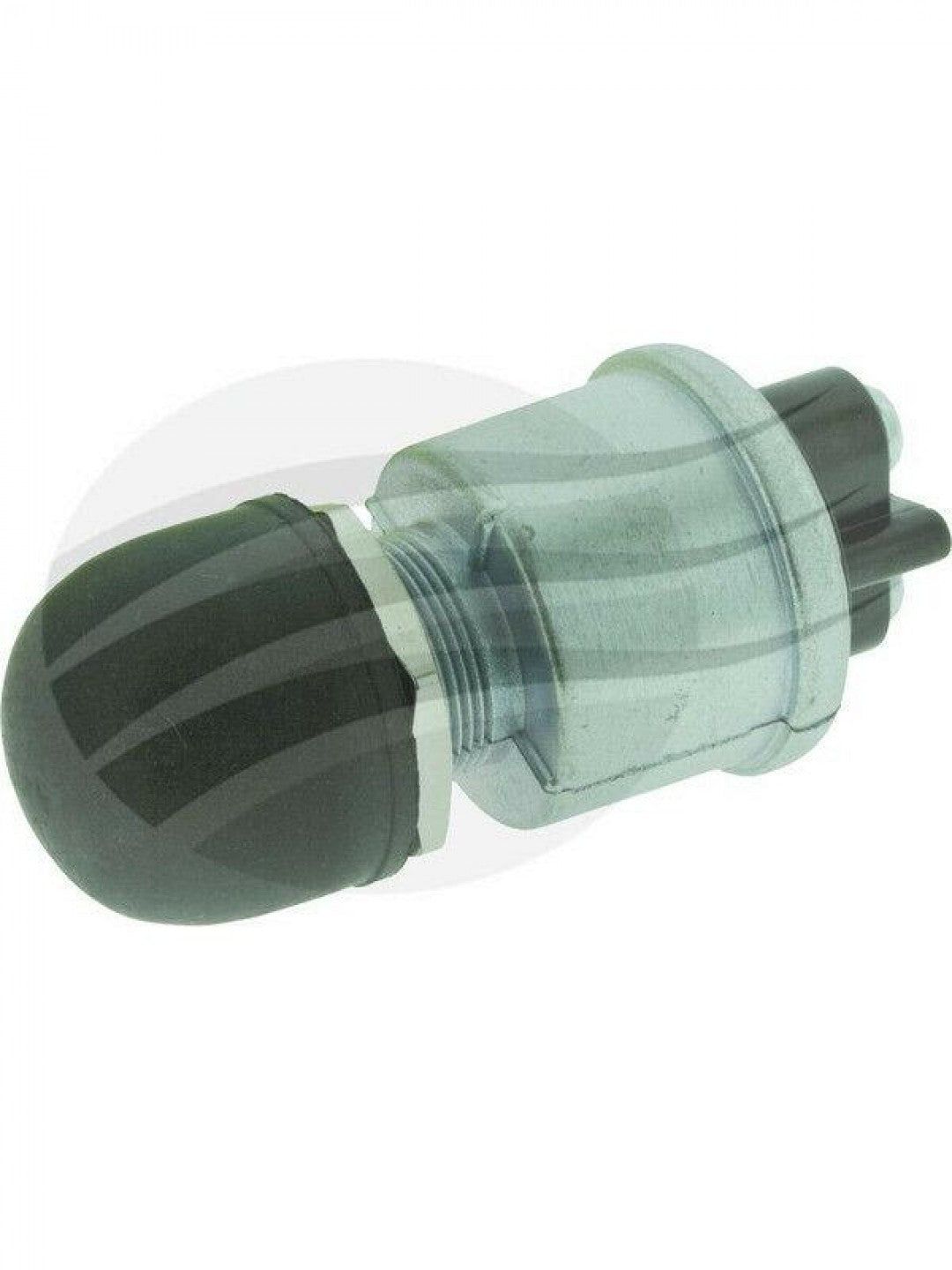

Jaylec Push Button Switch Off / Mom On 12/24 Volt 60amp
2 Position - Of f /Mom On
Single Pole - Single Throw
Maximum Load: 60amp at 12 Volt, 30amp at 24 Volt
Protective Weather / Dust proof Rubber (Neoprene) Cap Actuator
On with actuator pressed - spring return to Off position
Silver Contacts
2 Screw Terminals
Mounting Stem: 16.00mm long with a 5/8"-32UNF Thread and 15.87mm diameter
Suits panel thickness 1.52mm to 6.35mm
Dimensions:- 59mm x 28.45mm
1 year Warranty
| Specifications |
| Voltage |
12 - 24 VOLT |
| Amps |
60 |
| Function |
OFF / MOM ON |
| Number of Terminals |
2 |
| Number of Postions |
2 |
| Contact Configuration |
SPST |
