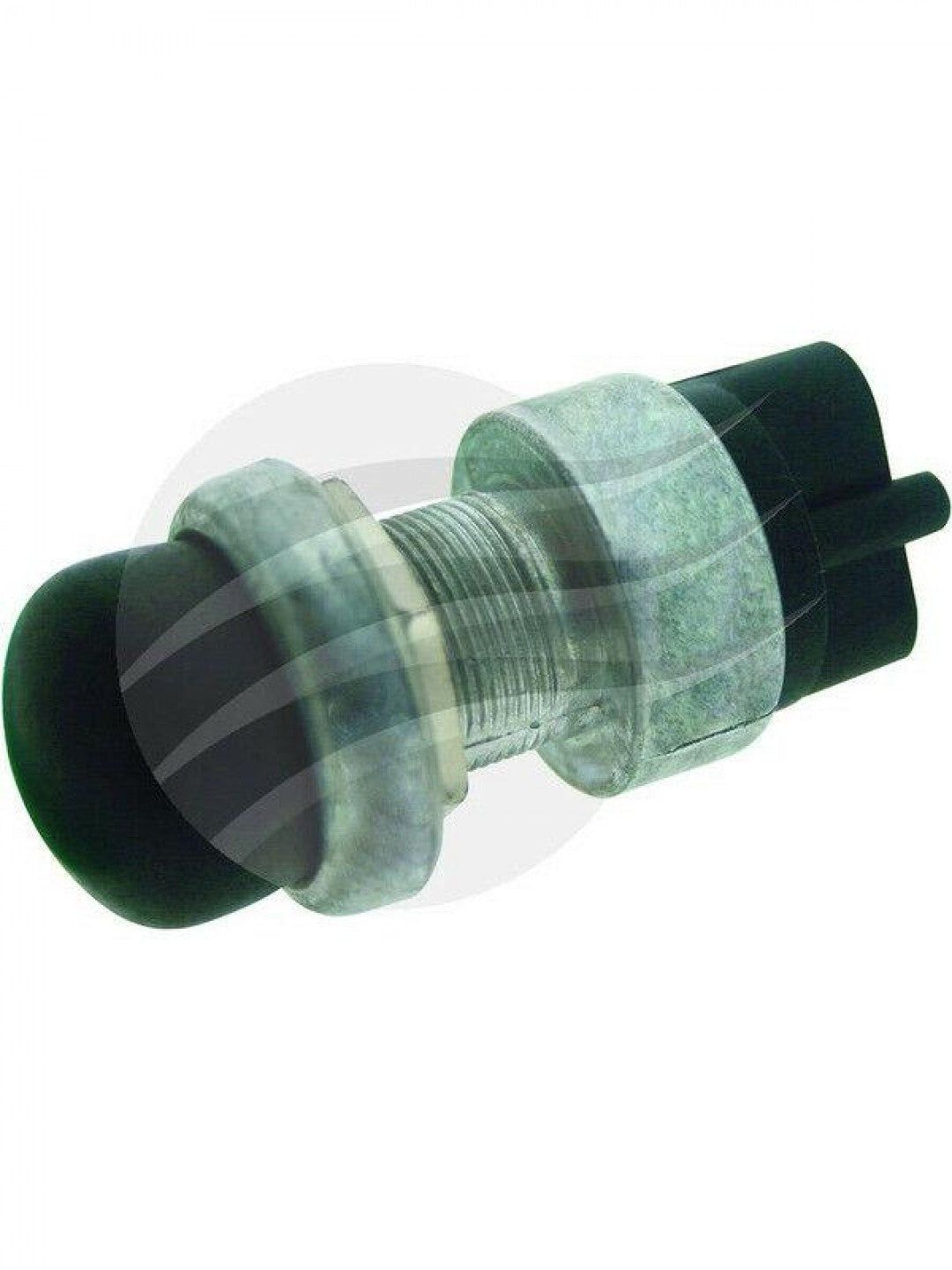

Jaylec Push Button Switch Off/Mom On 12/24 Volt 60amp.
2 Position - Off/Mom On- Single Pole - Single Throw- Protective Weather/Dust proof Rubber Cap Actuator.
Maximum Load: 60amp at 12 Volt- 30amp at 24 Volt.
On with actuator pressed- spring return to Off position.
Silver Contacts.
2 Screw terminals.
Mounting Stem: 16.00mm long with a 5/8"-32 thread and 15.87mm diameter.-Suits panel thickness 1.52mm to 6.35mm.-1 year Warranty.--Dimensions:-50.29mm x 28.45mm
| Specifications |
| Voltage |
12 - 24 VOLT |
| Amps |
60 |
| Function |
OFF / MOM ON |
| Number of Terminals |
2 |
| Number of Postions |
2 |
| Contact Configuration |
SPST |
