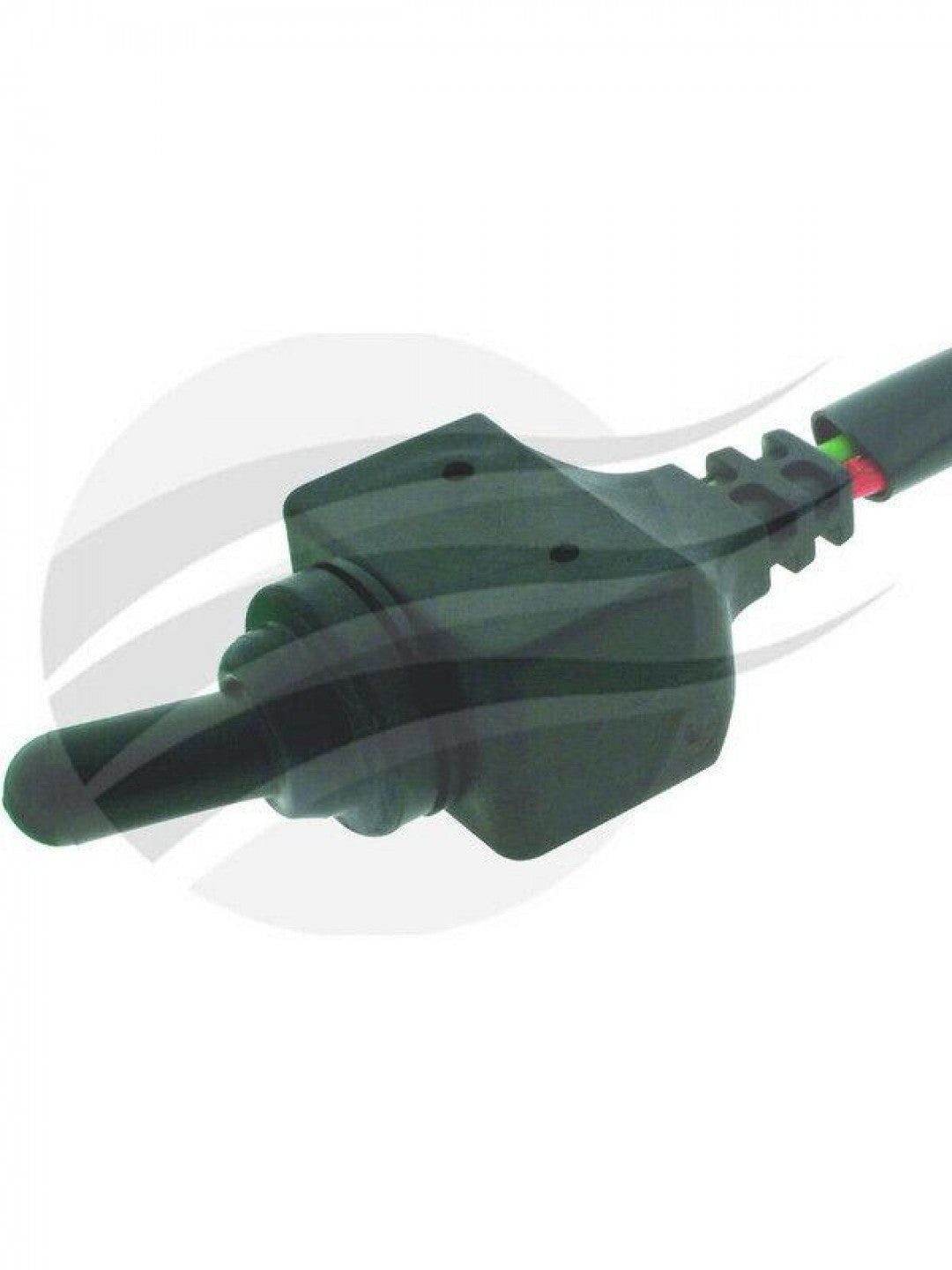

Jaylec Marine Toggle Switch On/Off 12/24 Volt 6amp.
2 Position - On/Off- Single Pole - Single Throw- Chrome plated Toggle with Neoprene Rubber Boot.
Maximum Load: 6amp at 12 Volt- 3amp at 24 Volt.
Silver Contacts.
Neoprene covered housing- pre-wired with 2 x 6.35mm leads- 6.7" or 170mm long.-11.90mm Mounting Stem diameter with a 15/32"-32 Thread and 7.50mm long.
Suits panel thickness up to 4.76mm.
Toggle Handle length: 11mm.
Weather proof- protected against moisture and dust.
64mm x 26mm x 17mm.
Jaylec
Dimensions:
1 year Warranty.
| Specifications |
| Voltage |
12 - 24 VOLT |
| Amps |
6 |
| Function |
ON / OFF |
| Number of Terminals |
2 |
| Number of Postions |
2 |
| Contact Configuration |
SPST |
| Contacts |
NO |
