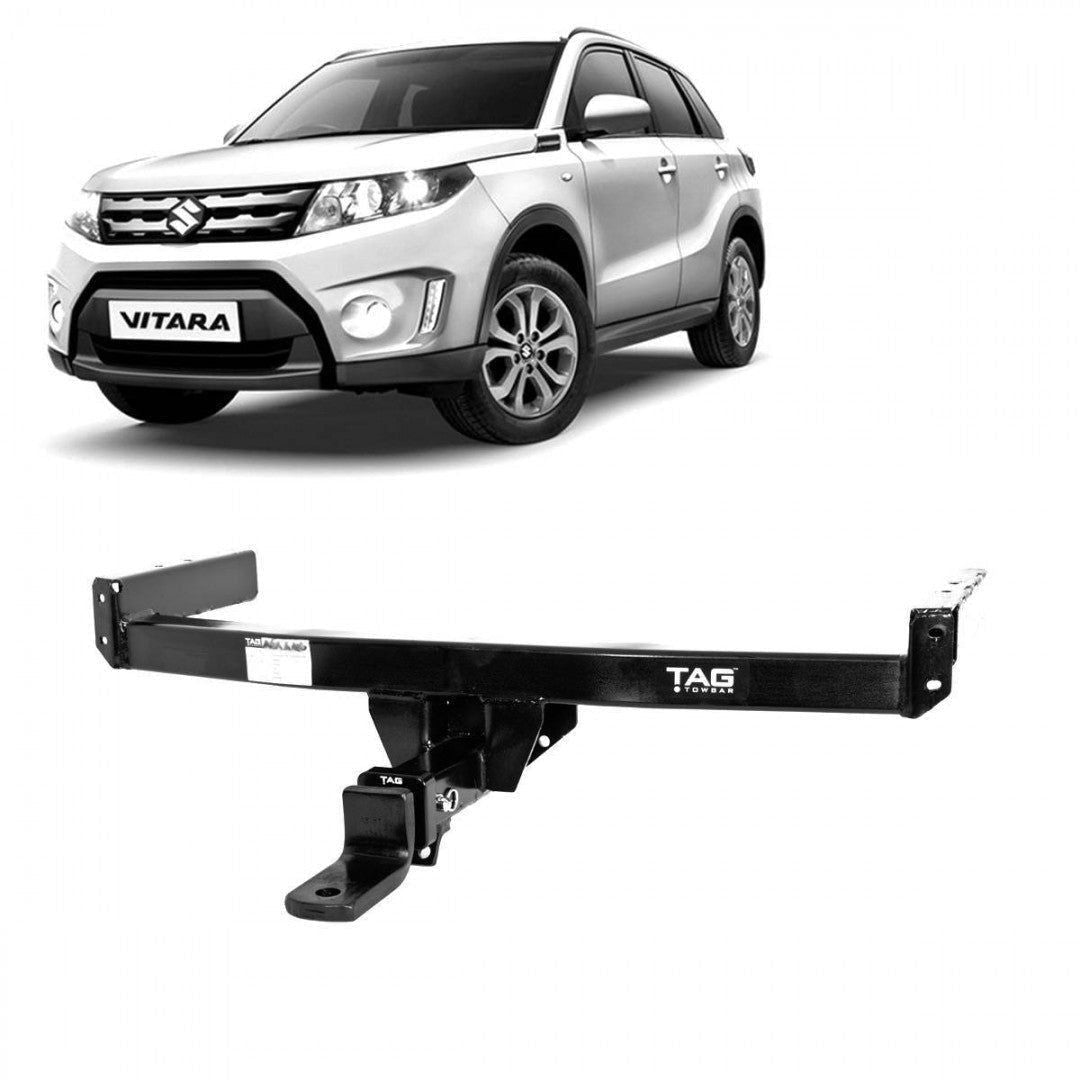

TAG Heavy Duty Towbar Solution for your Suzuki Grand Vitara 5-Door
The TAG Heavy Duty Towbar (T4U504) is a robust towing solution designed specifically for the 5-Door Suzuki Grand Vitara models (09/2005 - 05/2019). Engineered and manufactured in Australia, this Class 4 towbar features a 50mm x 50mm square hitch receiver, providing maximum durability for heavy-duty applications. With a massive 2000kg towing capacity and a 150kg static ball weight, it is perfectly suited for towing caravans, boats, and heavy trailers. The towbar utilizes factory mounting points for a secure fit and is finished with an enamel immersion-dipped coating for long-lasting protection. This complete kit includes the tow ball, ball mount, pin and clip, and D-shackles, all backed by TAG's Limited Lifetime Warranty. Note: This model is compatible with 5-Door variants only and will not fit 3-Door models.
Key Features:
- Suits 5-Door Models Only (Will Not Fit 3-Door Models)
- Class 4 Towbar - 50mm x 50mm Square Hitch Receiver
- Utilises Factory Mounting Points for ease of fitment
- 2000kg Towing Capacity / 150kg Static Ball Weight
- Enamel Immersion Dipped Coating for superior corrosion resistance
- Concealed exposure for a clean, integrated vehicle look
- No ECU required for installation
- TAG Limited Lifetime Warranty
- Includes: Tow Ball, Ball Mount, Pin & Clip, and D-Shackles
- Designed and Manufactured in Australia
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications:
- Towbar Class: Heavy Duty
- Towbar Capacity [kg]: 2000
- Ball Weight [kg]: 150
- Hitch Type: 50mm Square Hitch Receiver
- Coating: Enamel Immersion Dipped
- Bumper Removed During Fitment: Yes
- Exposure: Concealed
- ECU Required: No
- Fitting Time [min.]: 60
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
Full Vehicle Applications List
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JT, TD, TE | J20A | 2.0L | Petrol | RWD | |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | SUV | JB419 | F9Q | 1.9L | Diesel | Manual 4WD | |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JT, TD, TE (JB424, JT424, TDA4) | J24B | 2.4L | Petrol | AWD | |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JB, JT, TD, TE | J24B | 2.4L | Petrol | RWD | |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JB424; JT | J24B | 2.4L | Petrol | Automatic/Manual RWD | |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JB424; JT | J24B | 2.4L | Petrol | Automatic/Manual 4WD | |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JT, TD, TE (JB632, JT632, TDB4) | N32A | 3.2L | Petrol | AWD | |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JB, JT, TD, TE | N32A | 3.2L | Petrol | 4WD | |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JT, TD, TE (JB419WD, JT419, TD44) | F9QB, F9QC | 1.9L | Diesel | DDiS | AWD |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JT, TD, TE (JB420, TD54) | J20A | 2.0L | Petrol | AWD | |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JB419; JT | F9Q | 1.9L | Diesel | Manual 4WD | |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JT | N32A | 3.2L | Petrol | PRESTIGE | Automatic 4WD |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JB, JT, TD, TE | H 27 A | 2.7L | Petrol | AWD | |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JB627; JT | H27A | 2.7L | Petrol | Automatic/Manual 4WD | |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JB420; JT | J20A | 2.0L | Petrol | Automatic/Manual 4WD | |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | JT | H27A | 2.7L | Petrol | AWD | |
| SUZUKI | GRAND VITARA | 09/2005 | 05/2019 | Wagon | FT, HT (JA627, TX92) | H 27 A | 2.7L | Petrol | AWD |
